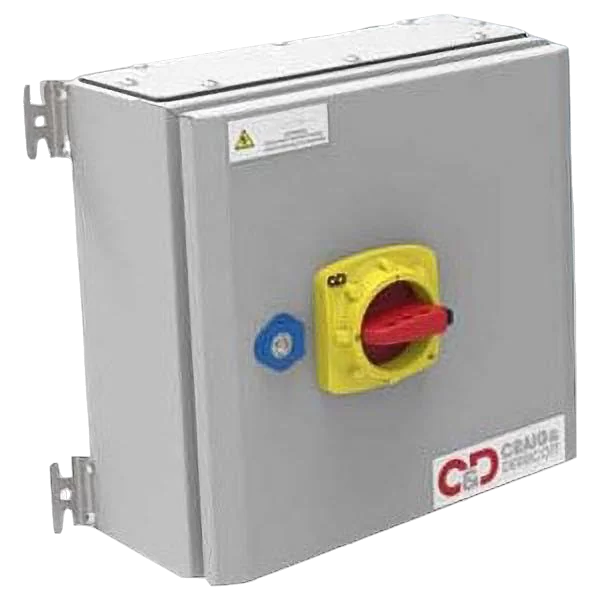

Craig & Derricott EDFG06303NL i-Switch Light Grey Sheet Steel TPN Fuse Combination Unit With Safety Handle IP65 630A 415V Height: 1000mm - Width: 600mm - Depth: 367mm
EDFG06303NL
Range Options
|
EDFG00323NL | 32A, H300 W300 D217mm | £247.76 £206.47 |
in cart
|
|
EDFG00633NL | 63A, H300 W300 D217mm | £265.66 £221.38 |
in cart
|
|
EDFG01003NL | 100A, H500 W400 D267mm | £390.94 £325.78 |
in cart
|
|
EDFG01253NL | 125A, H500 W400 D267mm | £432.02 £360.02 |
in cart
|
|
EDFG01603NL | 160A, H500 W400 D267mm | £462.18 £385.15 |
in cart
|
|
EDFG02003NL | 200A, H600 W400 D267mm | £683.10 £569.25 |
in cart
|
|
EDFG02503NL | 250A, H600 W400 D367mm | £808.85 £674.04 |
in cart
|
|
EDFG03153NL | 315A, H800 W600 D367mm | £1,022.96 £852.47 |
in cart
|
|
EDFG04003NL | 400A, H800 W600 D367mm | £1,085.02 £904.18 |
in cart
|
|
EDFG06303NL | 630A, H1000 W600 D367mm | £1,970.00 £1,641.67 |
in cart
|
Craig & Derricott i-Switch TPN 630A Fuse Combination Unit – Ultra-High Capacity IP65 Isolator with Advanced Industrial Safety
The Craig & Derricott EDFG06303NL i-Switch is a 630A TPN fuse combination unit, engineered for the most demanding industrial environments. Built into a heavy-duty IP65-rated sheet steel enclosure, it offers maximum isolation performance with lockable safety control, visual contact status, and installation-ready features.
- Heavy-Duty Safety Handle: Padlockable in the ‘Off’ position (holds up to three padlocks), ensuring isolation security during maintenance or downtime.
- Authorised Override Access: Interlock defeat function allows competent persons to open the enclosure in emergencies or for testing.
- Positive Contact Indication: Viewing windows on the switch body allow for clear verification of open or closed status.
- Installer-Focused Design: Removable gland plates on both top and bottom with galvanised chassis-mounted switch for streamlined setup.
- Additional Safety Options: Compatible with fuse covers for enhanced operator protection and regulatory compliance.
Technical Specification
- Configuration: 3 Pole + Unswitched Neutral
- Current Rating: 630A (Ithe)
- Breaking Capacity: 5040A (AC23A/415V)
- Construction: IP65 Sheet Steel – Grey RAL 7035
- Dimensions: 1000mm (H) x 600mm (W) x 367mm (D)
✅ Depend on the Craig & Derricott 630A i-Switch for reliable, high-capacity isolation in critical power installations with maximum safety and performance.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Fuse System | BS88 |
| Range | Craig & Derricott i-Switch |
| Product | Switch Fuses & Disconnectors |
| Type | Fuse Switch |
| Ingress Protection | IP65 |
| Length | 1000 mm |
| Voltage | 415 V |
| Pole Configuration | Four Pole (4P) |
| Material | Sheet Steel |
| Width | 800 mm |
| Depth | 367 mm |
| Current Rating | 630A |
| Finish | Powder Coated |
| Standards | IEC / BS EN 60947-3 |
| Number Of Poles | Four Pole (4P) |
| Voltage Rating | 415 V |
| Rated Current | 630 A |
| Breaking Current | 80 kA |
| Enclosed | Y |
| Terminal Type | Lug |
| Height | 100 mm |
| Number Of Contacts | 4 |
| Switched | Y |
| Lockable? | Y |
| C/w Fuses | Y |
