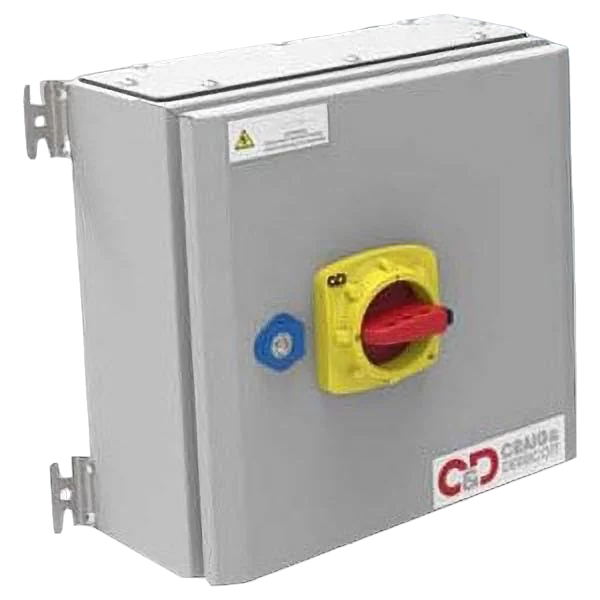

Craig & Derricott EDFG00633NL i-Switch Light Grey Sheet Steel TPN Fuse Combination Unit With Safety Handle IP65 63A 415V Height: 300mm - Width: 300mm - Depth: 217mm
EDFG00633NL
Range Options
|
EDFG00323NL | 32A, H300 W300 D217mm | £247.76 £206.47 |
in cart
|
|
EDFG00633NL | 63A, H300 W300 D217mm | £265.66 £221.38 |
in cart
|
|
EDFG01003NL | 100A, H500 W400 D267mm | £390.94 £325.78 |
in cart
|
|
EDFG01253NL | 125A, H500 W400 D267mm | £432.02 £360.02 |
in cart
|
|
EDFG01603NL | 160A, H500 W400 D267mm | £462.18 £385.15 |
in cart
|
|
EDFG02003NL | 200A, H600 W400 D267mm | £683.10 £569.25 |
in cart
|
|
EDFG02503NL | 250A, H600 W400 D367mm | £808.85 £674.04 |
in cart
|
|
EDFG03153NL | 315A, H800 W600 D367mm | £1,022.96 £852.47 |
in cart
|
|
EDFG04003NL | 400A, H800 W600 D367mm | £1,085.02 £904.18 |
in cart
|
|
EDFG06303NL | 630A, H1000 W600 D367mm | £1,970.00 £1,641.67 |
in cart
|
Craig & Derricott i-Switch TPN 63A Fuse Combination Unit – Robust IP65 Isolator with Enhanced Safety Features
The Craig & Derricott EDFG00633NL i-Switch provides safe and reliable power isolation in a durable, IP65-rated steel enclosure. Designed for industrial and commercial use, this 63A TPN unit includes a padlockable handle, interlock safety features, and clear contact indication, ensuring dependable performance in demanding environments.
- Secure Safety Handle: Lockable in the ‘Off’ position (accepts up to three padlocks), preventing access to live components.
- Emergency Override Access: Interlock defeat function enables door opening during testing or fault scenarios by qualified personnel.
- Clear Contact Status: Viewing windows on the switch body show positive contact indication for visual confirmation.
- Installer-Friendly Design: Removable top and bottom gland plates and chassis-mounted switch for straightforward installation.
- Accessory Compatibility: Optional fuse covers available for enhanced safety and protection.
Technical Specification
- Configuration: 3 Pole + Unswitched Neutral
- Current Rating: 63A (Ithe)
- Breaking Capacity: 504A (AC23A/415V)
- Construction: IP65 Sheet Steel – Grey RAL 7035
- Dimensions: 300mm (H) x 300mm (W) x 217mm (D)
✅ Choose the Craig & Derricott 63A i-Switch for reliable, high-capacity isolation with built-in safety and easy installation features.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Fuse System | BS88 |
| Range | Craig & Derricott i-Switch |
| Product | Switch Fuses & Disconnectors |
| Type | Fuse Switch |
| Ingress Protection | IP65 |
| Length | 300 mm |
| Voltage | 415 V |
| Pole Configuration | Four Pole (4P) |
| Material | Sheet Steel |
| Width | 300 mm |
| Depth | 217 mm |
| Current Rating | 63A |
| Finish | Powder Coated |
| Standards | IEC / BS EN 60947-3 |
| Number Of Poles | Four Pole (4P) |
| Voltage Rating | 415 V |
| Rated Current | 63 A |
| Breaking Current | 80 kA |
| Enclosed | Y |
| Terminal Type | Tunnel |
| Height | 300 mm |
| Number Of Contacts | 4 |
| Switched | Y |
| Lockable? | Y |
| C/w Fuses | Y |
