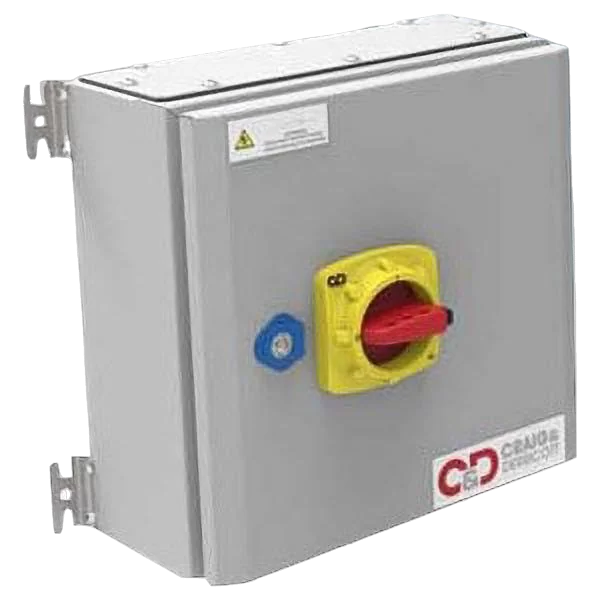

Craig & Derricott EDFG04003NL i-Switch Light Grey Sheet Steel TPN Fuse Combination Unit With Safety Handle IP65 400A 415V Height: 800mm - Width: 600mm - Depth: 367mm
EDFG04003NL
Range Options
|
EDFG00323NL | 32A, H300 W300 D217mm | £247.76 £206.47 |
in cart
|
|
EDFG00633NL | 63A, H300 W300 D217mm | £265.66 £221.38 |
in cart
|
|
EDFG01003NL | 100A, H500 W400 D267mm | £390.94 £325.78 |
in cart
|
|
EDFG01253NL | 125A, H500 W400 D267mm | £432.02 £360.02 |
in cart
|
|
EDFG01603NL | 160A, H500 W400 D267mm | £462.18 £385.15 |
in cart
|
|
EDFG02003NL | 200A, H600 W400 D267mm | £683.10 £569.25 |
in cart
|
|
EDFG02503NL | 250A, H600 W400 D367mm | £808.85 £674.04 |
in cart
|
|
EDFG03153NL | 315A, H800 W600 D367mm | £1,022.96 £852.47 |
in cart
|
|
EDFG04003NL | 400A, H800 W600 D367mm | £1,085.02 £904.18 |
in cart
|
|
EDFG06303NL | 630A, H1000 W600 D367mm | £1,970.00 £1,641.67 |
in cart
|
Craig & Derricott i-Switch TPN 400A Fuse Combination Unit – High-Capacity IP65 Isolator with Advanced Safety & Industrial Durability
The Craig & Derricott EDFG04003NL i-Switch is a 400A TPN fuse combination unit engineered for high-load industrial isolation. Built into a robust IP65-rated sheet steel enclosure, it offers secure locking, emergency override access, and visual contact confirmation – ideal for safety-critical power distribution setups.
- Secure Safety Handle: Padlockable in the ‘Off’ position (up to three padlocks), preventing unauthorised access during isolation.
- Emergency Interlock Defeat: Allows door opening by qualified personnel for testing or emergency operations.
- Visual Contact Status: Integrated windows in the switch body provide clear indication of contact position.
- Efficient Installation: Top and bottom removable gland plates with chassis-mounted switch for simplified cable entry and setup.
- Accessory Compatible: Optional fuse covers available for enhanced protection and compliance with site safety standards.
Technical Specification
- Configuration: 3 Pole + Unswitched Neutral
- Current Rating: 400A (Ithe)
- Breaking Capacity: 3200A (AC23A/415V)
- Construction: IP65 Sheet Steel – Grey RAL 7035
- Dimensions: 800mm (H) x 600mm (W) x 367mm (D)
✅ Choose the Craig & Derricott 400A i-Switch for secure, high-capacity isolation in the most demanding industrial power environments.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Fuse System | BS88 |
| Range | Craig & Derricott i-Switch |
| Product | Switch Fuses & Disconnectors |
| Type | Fuse Switch |
| Ingress Protection | IP65 |
| Length | 800 mm |
| Voltage | 415 V |
| Pole Configuration | Four Pole (4P) |
| Material | Sheet Steel |
| Width | 600 mm |
| Depth | 367 mm |
| Current Rating | 400A |
| Finish | Powder Coated |
| Standards | IEC / BS EN 60947-3 |
| Number Of Poles | Four Pole (4P) |
| Voltage Rating | 415 V |
| Rated Current | 400 A |
| Breaking Current | 80 kA |
| Enclosed | Y |
| Terminal Type | Lug |
| Height | 800 mm |
| Number Of Contacts | 4 |
| Switched | Y |
| Lockable? | Y |
| C/w Fuses | Y |
