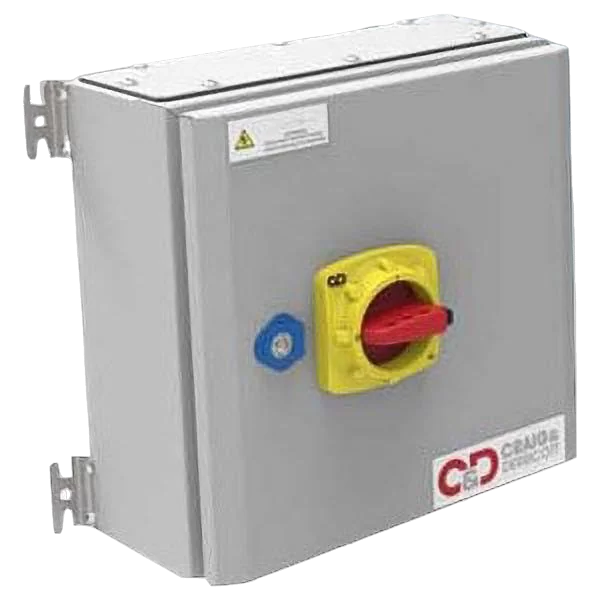

Craig & Derricott EDFG01253NL i-Switch Light Grey Sheet Steel TPN Fuse Combination Unit With Safety Handle IP65 125A 415V Height: 500mm - Width: 400mm - Depth: 267mm
EDFG01253NL
Range Options
|
EDFG00323NL | 32A, H300 W300 D217mm | £247.76 £206.47 |
in cart
|
|
EDFG00633NL | 63A, H300 W300 D217mm | £265.66 £221.38 |
in cart
|
|
EDFG01003NL | 100A, H500 W400 D267mm | £390.94 £325.78 |
in cart
|
|
EDFG01253NL | 125A, H500 W400 D267mm | £432.02 £360.02 |
in cart
|
|
EDFG01603NL | 160A, H500 W400 D267mm | £462.18 £385.15 |
in cart
|
|
EDFG02003NL | 200A, H600 W400 D267mm | £683.10 £569.25 |
in cart
|
|
EDFG02503NL | 250A, H600 W400 D367mm | £808.85 £674.04 |
in cart
|
|
EDFG03153NL | 315A, H800 W600 D367mm | £1,022.96 £852.47 |
in cart
|
|
EDFG04003NL | 400A, H800 W600 D367mm | £1,085.02 £904.18 |
in cart
|
|
EDFG06303NL | 630A, H1000 W600 D367mm | £1,970.00 £1,641.67 |
in cart
|
Craig & Derricott i-Switch TPN 125A Fuse Combination Unit – High-Performance IP65 Isolator for Demanding Installations
The Craig & Derricott EDFG01253NL i-Switch is a 125A TPN fuse combination unit designed for industrial-grade isolation with safety and reliability at its core. Housed in a rugged IP65 sheet steel enclosure, it features a lockable handle, clear contact indication, and removable gland plates for ease of installation.
- Secure Safety Handle: Lockable in the 'Off' position (accepts up to three padlocks), ensuring the door cannot be opened while isolated.
- Interlock Override: Allows authorised access for testing or emergency use, when carried out by a competent person.
- Visual Contact Status: Integrated viewing windows provide clear indication of contact position.
- Installer-Friendly Layout: Top and bottom removable gland plates with switch mounted on galvanised chassis for efficient cable management.
- Accessory Compatible: Optional fuse covers available for added operator safety and compliance.
Technical Specification
- Configuration: 3 Pole + Unswitched Neutral
- Current Rating: 125A (Ithe)
- Breaking Capacity: 1000A (AC23A/415V)
- Construction: IP65 Sheet Steel – Grey RAL 7035
- Dimensions: 500mm (H) x 400mm (W) x 267mm (D)
✅ Count on the Craig & Derricott 125A i-Switch for secure, high-capacity isolation in harsh environments and safety-critical installations.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Fuse System | BS88 |
| Range | Craig & Derricott i-Switch |
| Product | Switch Fuses & Disconnectors |
| Type | Fuse Switch |
| Ingress Protection | IP65 |
| Length | 500 mm |
| Voltage | 415 V |
| Pole Configuration | Four Pole (4P) |
| Material | Sheet Steel |
| Width | 400 mm |
| Depth | 267 mm |
| Current Rating | 125A |
| Finish | Powder Coated |
| Standards | IEC / BS EN 60947-3 |
| Number Of Poles | Four Pole (4P) |
| Voltage Rating | 415 V |
| Rated Current | 125 A |
| Breaking Current | 80 kA |
| Enclosed | Y |
| Terminal Type | Lug |
| Height | 500 mm |
| Number Of Contacts | 4 |
| Switched | Y |
| Lockable? | Y |
| C/w Fuses | Y |
