Click CMA052 Mode White Moulded DP Switched Fused Connection Unit With Neon & Bottom Flex Outlet 13A
CMA052

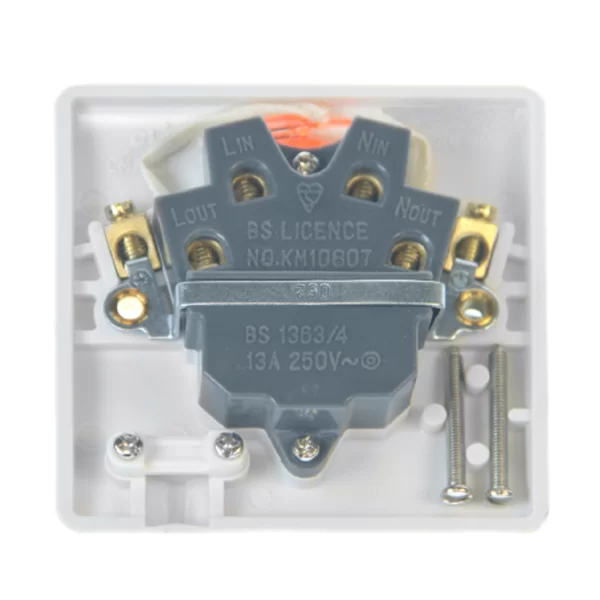

Click CMA052 Mode White Moulded 13A Double Pole Switched Fused Connection Unit with Neon & Bottom Flex Outlet – Safe, Visible Isolation for Fixed Appliances
The Click CMA052 Mode Switched Fused Connection Unit combines reliable appliance isolation with visual power status. Featuring a neon indicator, bottom flex outlet, and double pole switching, this 13A unit is ideal for boilers, water heaters, and other fixed appliances in domestic and commercial settings.
- 13A Fused Connection: Integrated fuse ensures circuit protection for permanently wired appliances.
- Double Pole Switching: Fully isolates both live and neutral conductors for enhanced user safety during maintenance.
- Neon Power Indicator: Provides clear visual confirmation when the power is on for added peace of mind.
- Bottom Flex Outlet: Allows neat and direct connection to appliances positioned below the unit.
- Robust White Moulded Finish: Durable urea construction resists scratches, heat, and discolouration.
Technical Specification
- Type: Switched Fused Connection Unit
- Switching: Double Pole
- Current Rating: 13A
- Indicator: Neon
- Flex Outlet: Bottom Entry
✅ Choose the Click CMA052 for safe, visible power control of fixed appliances with built-in fuse protection and clean cable routing!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5055287016959 |
| Range | Click Mode |
| Includes 13a Switch Socket? | N |
| Product | Connection Unit - Spur |
| Type | Switched w/Neon + Flex Outlet |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP20 |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| Length | 86 mm |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Warranty | 20 Years |
| Indicator Colour | Orange |
| Pole Configuration | Double Pole (2P) |
| Width | 86 mm |
| Depth | 9.5 mm |
| Current Rating | 13 A |
| Standards | BS 1363-4 BS 1362 |
| Qualifier | FCU Plate |
| Ce Approved | N |
| Height | 86 mm |
| Body Material | Urea |
| Gangs | 1 Gang |
| Neon Indicator | Y |
| Face Colour | Polar White |
| Rocker Colour | White |
| Flex Outlet | Y |
| Legend | Fused |
| Switched/unswitched | Switched |
| Fuse Fitted | Y |
| Lockable? | N |
