Click CMA030 Mode White Moulded 1 Gang Unswitched Socket 13A
CMA030
Click CMA030 Mode White Moulded 1 Gang 13A Unswitched Socket – Simple, Fixed Power Solution for Permanent Appliances
The Click CMA030 Mode 1 Gang Unswitched Socket provides a reliable 13A power outlet for fixed appliances that do not require switching control. With a clean white moulded finish, it’s ideal for installations such as fridges, alarms, or built-in appliances in domestic and commercial environments.
- 13A Unswitched Socket: Provides a constant power supply, ideal for appliances that should not be accidentally switched off.
- Durable Moulded Design: Constructed from high-quality white urea for long-lasting resistance to wear and discolouration.
- Slim, Modern Profile: Screw-capped faceplate gives a clean, professional appearance that matches the Mode range.
- Standard Single-Gang Format: Compatible with all standard 1 gang back boxes for straightforward installation.

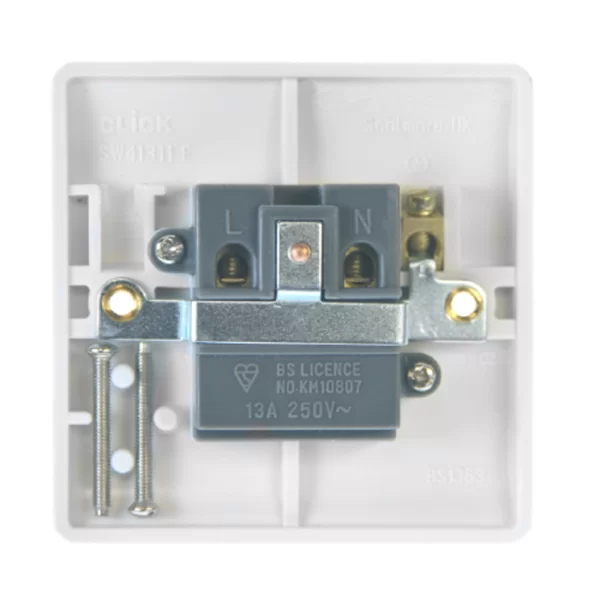

- Secure Terminal Layout: Clearly marked terminals ensure quick and accurate wiring for installers.
Technical Specification
- Socket Type: 1 Gang Unswitched
- Current Rating: 13A
- Material: White Moulded Urea
- Finish: Smooth White
- Mounting: Flush
✅ Choose the Click CMA030 for reliable, fixed power where switching is not required!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5055112819991 |
| Range | Click Mode |
| Includes 13a Switch Socket? | N |
| Product | Socket Outlet |
| Type | 1 Gang Unswitched |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP20 |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| Length | 86 mm |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Warranty | 20 Years |
| Mounting | Surface |
| Width | 86 mm |
| Depth | 9.5 mm |
| Current Rating | 13 A |
| Standards | BS 1363-2 |
| Qualifier | UK Sockets |
| Ce Approved | N |
| Pin Shape | Rectangular |
| Height | 86 mm |
| Body Material | Urea |
| Gangs | 1 Gang |
| Neon Indicator | N |
| Face Colour | Polar White |
| Flex Outlet | N |
| Switched/unswitched | Unswitched |
| Fuse Fitted | N |
| Lockable? | N |
