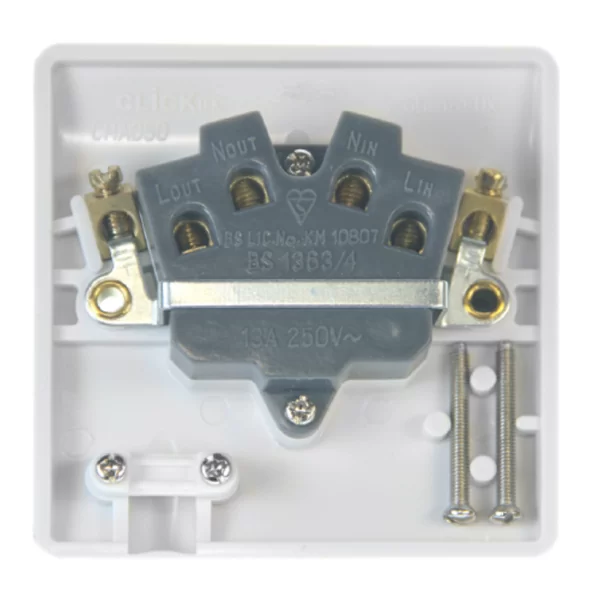

Click CMA050 Mode White Moulded Unswitched Fused Connection Unit With Bottom Flex Outlet 13A
CMA050
Click CMA050 Mode White Moulded 13A Unswitched Fused Connection Unit with Bottom Flex Outlet – Reliable Fixed Power for Appliance Installations
The Click CMA050 Mode Unswitched Fused Connection Unit offers a safe, fixed power supply for appliances requiring permanent connection. Rated at 13A and featuring a bottom flex outlet, this white moulded unit is ideal for boilers, hand dryers, or other fixed equipment in residential and commercial settings.
- 13A Fused Connection: Provides a secure power outlet with integrated fuse protection for permanently wired appliances.
- Unswitched Design: Ensures constant power supply, ideal for essential equipment that should not be accidentally turned off.
- Bottom Flex Outlet: Allows neat and direct connection to appliances located below the unit for a tidy finish.
- Durable White Moulded Finish: Made from high-quality urea that resists discolouration, scratches, and heat.
- Screw-Capped Faceplate: Clean and modern appearance to suit a wide range of interior styles.
Technical Specification
- Type: Unswitched Fused Connection Unit
- Current Rating: 13A
- Flex Outlet: Bottom Entry
- Fuse: Supplied
- Material: White Moulded Urea
✅ Choose the Click CMA050 for safe, permanent power connection to fixed appliances with a clean and tidy finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5055112820102 |
| Range | Click Mode |
| Includes 13a Switch Socket? | N |
| Product | Connection Unit - Spur |
| Type | Unswitched w/Flex Outlet |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP20 |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| Length | 86 mm |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Warranty | 20 Years |
| Width | 86 mm |
| Depth | 9.5 mm |
| Current Rating | 13 A |
| Standards | BS 1363-4 BS 1362 |
| Qualifier | FCU Plate |
| Ce Approved | N |
| Height | 86 mm |
| Body Material | Urea |
| Gangs | 1 Gang |
| Neon Indicator | N |
| Face Colour | Polar White |
| Flex Outlet | Y |
| Legend | Fused |
| Switched/unswitched | Unswitched |
| Fuse Fitted | Y |
| Lockable? | N |
