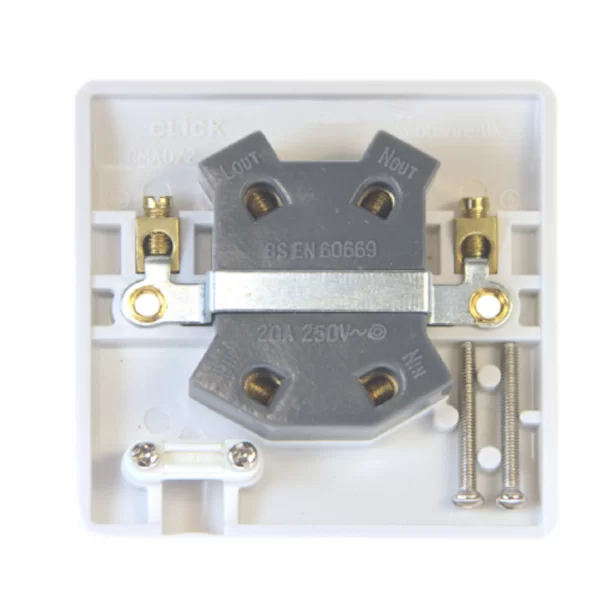

Click CMA022 Mode White Moulded Double Pole Switch With Bottom Flex Outlet 20A
CMA022
Click CMA022 Mode White Moulded 20A Double Pole Switch with Bottom Flex Outlet – Safe Isolation for Fixed Appliance Installations
The Click CMA022 Mode Double Pole Switch provides safe and reliable isolation for fixed appliances, featuring a 20A rating and an integrated bottom flex outlet. With its durable white moulded finish, it’s ideal for domestic and light commercial applications such as water heaters and hand dryers.
- 20A Double Pole Switching: Safely isolates both live and neutral conductors for fixed appliances, ensuring safe maintenance access.
- Bottom Flex Outlet: Designed for clean, direct cable connection to appliances located below the switch position.
- Durable White Moulded Construction: Made from high-quality urea for resistance to wear, discolouration, and heat.
- Screw-Capped Faceplate: Provides a smooth, professional appearance suited to modern installations.
- Ideal for Appliance Isolation: Perfect for cookers, boilers, water heaters, and other permanently connected loads.
Technical Specification
- Switch Type: Double Pole
- Current Rating: 20A
- Flex Outlet: Bottom Entry
- Material: White Moulded Urea
- Finish: Smooth White
✅ Use the Click CMA022 for safe, tidy appliance isolation with a reliable bottom flex outlet design!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5055112819939 |
| Range | Click Mode |
| Includes 13a Switch Socket? | N |
| Product | Double Pole Switch |
| Type | Standard Plate 20 Amp |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP20 |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| Length | 86 mm |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Warranty | 20 Years |
| Pole Configuration | Double Pole (2P) |
| Mounting | Flush |
| Width | 86 mm |
| Depth | 9.5 mm |
| Current Rating | 20 A |
| Standards | BS EN 60669-1 |
| Qualifier | 20A Switches |
| Ce Approved | N |
| Height | 86 mm |
| Body Material | Urea |
| Gangs | 1 Gang |
| Neon Indicator | N |
| Face Colour | Polar White |
| Rocker Colour | White |
| Flex Outlet | Y |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
