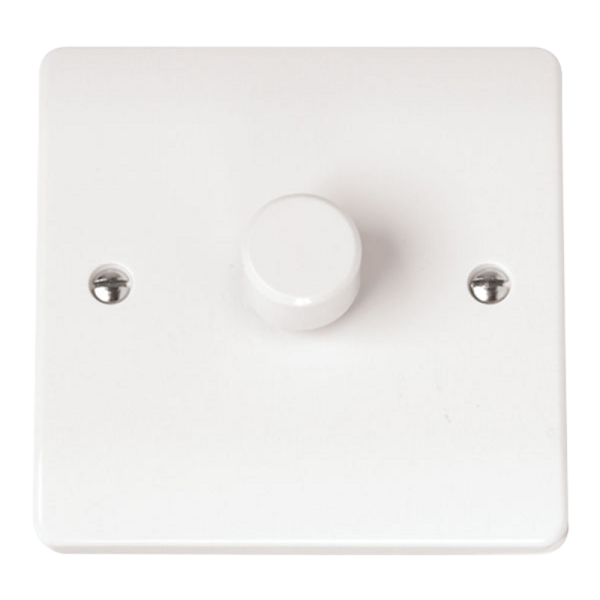

Click CMA161 Mode White Moulded 1 Gang 2 Way Trail Edge Dimmer Switch 100W
CMA161
Click CMA161 Mode White Moulded 1 Gang 2 Way Trailing Edge Dimmer Switch 100W – Smooth, Silent Dimming for LED and Low-Load Circuits
The Click CMA161 Mode 1 Gang Trailing Edge Dimmer Switch is designed for modern lighting systems, offering smooth dimming performance with low-wattage LED and electronic transformer loads. With a 100W max rating and a durable white moulded finish, it's ideal for both residential and light commercial applications.
- Trailing Edge Technology: Optimised for LED loads, providing silent operation and extended lamp life with reduced flicker.
- 1 Gang 2 Way Control: Allows dimming from one point and switching from a second, ideal for rooms with multiple access points.
- 100W LED Rating: Supports a wide range of dimmable LEDs and low-wattage lighting circuits.
- White Moulded Faceplate: Made from durable urea with a smooth, modern finish to match the Click Mode range.
- Rotary Dimmer Control: Offers precise, user-friendly light level adjustment with soft-start functionality.
Technical Specification
- Switch Type: 1 Gang 2 Way Trailing Edge Dimmer
- Load Rating: 100W Max LED
- Material: White Moulded Urea
- Finish: Smooth White
- Mounting: Flush
✅ Choose the Click CMA161 for flicker-free, LED-compatible dimming with a professional, modern finish!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Click Mode |
| Includes 13a Switch Socket? | N |
| Product | Dimmer Switch |
| Type | Leading Edge |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Wattage | 100 W |
| Tv Socket | N |
| Ingress Protection | IP20 |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| Length | 86 mm |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Mounting Box Minimum Depth | 25 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Warranty | 20 Years |
| Pole Configuration | Single Pole (1P) |
| Width | 86 mm |
| Depth | 9.5 mm |
| Standards | BS EN 60669-1 BS EN 55015 BS EN 61000-3-2 BS EN 61000-3-3 |
| Qualifier | Dimmer Switches |
| Ce Approved | N |
| Height | 86 mm |
| Body Material | Urea |
| Gangs | 1 Gang |
| Neon Indicator | N |
| Face Colour | Polar White |
| Ways | 2 Way |
| Flex Outlet | N |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
| Rotary ON/OFF | N |
| Push ON/OFF | Y |
| Leading Edge | Y |
| Trailing Edge | N |
