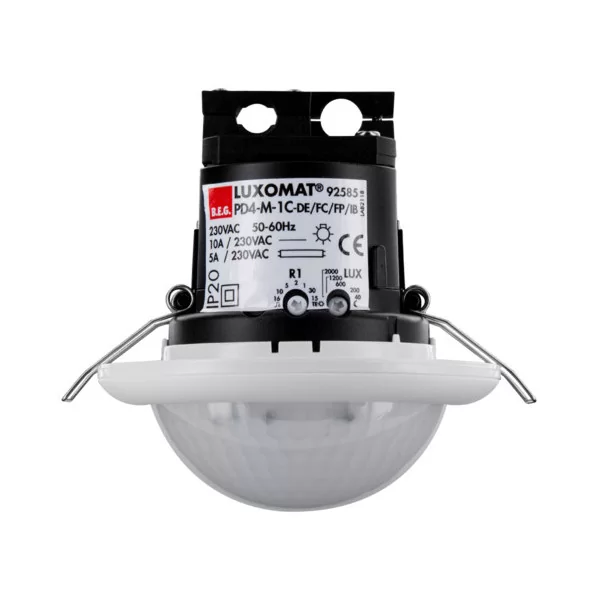

BEG Luxomat 92585 PD4-M-1C-FC White Poycarbonate Single Channel Flush Recessed Ceiling Mounting 360° PIR Presence Detector 2300W IP20 230V Dia ⌀: 97mm x H: 103mm
92585
Range Options
|
92144 | 360°, 2300W, IP44 | £81.00 £67.50 |
in cart
|
|
92190 | 360°, 2300W, IP23 | £42.53 £35.44 |
in cart
|
|
92196 | 360°, 2300W, IP23, Flush | £45.23 £37.69 |
in cart
|
|
92550 | 360°, 2300W, Master | £66.16 £55.13 |
in cart
|
|
92565 | 360°, 2300W, Flush, Master | £63.44 £52.87 |
in cart
|
|
92585 | 360°, 2300W, Flush | £99.90 £83.25 |
in cart
|
|
92902 | 360°, 1000W, Flush | £50.63 £42.19 |
in cart
|
PD4-M-1C-FC White 360° PIR Presence Detector – Single Channel, Flush Ceiling Mount, IP20, 230V
The PD4-M-1C-FC is a high-performance flush-mounted presence detector offering full 360° detection and wide-range coverage. Ideal for large interior spaces such as open-plan offices, classrooms, and meeting rooms, it delivers precise motion detection with a powerful switching relay and durable polycarbonate housing.
- Full 360° Circular Detection: Ensures comprehensive coverage with optimised sensitivity for seated, walking across, and walking towards motion.
- Wide Detection Range: Up to Ø24m for walking across, Ø8m walking towards, and Ø6.4m for seated activity at 2.5m mounting height and 18°C.
- Single Channel Output: Switches one lighting circuit with a high-performance relay compatible with all types of light fixtures.
- Flush Ceiling Mounting: Recessed installation offers a clean and discreet finish, ideal for modern indoor environments.
- Durable Polycarbonate Housing: UV- and shock-resistant material ensures long-term reliability in demanding interior applications.
- Energy Efficient Control: Automatically manages lighting based on occupancy, helping reduce energy consumption in commercial buildings.
Technical Specification
- Power Supply: 230V~ ±10%
- Mounting Type: Flush recessed ceiling mount
- Detection Angle: 360° circular
- Detection Range (at 2.5m height, 18°C): • Seated: Ø6.4m • Walking across: Ø24.0m • Walking towards: Ø8.0m
- Channels: 1 switching channel
- Switching Capacity: Up to 2300W
- Protection Rating: IP20 / Class II / CE
- Ambient Temperature: -25°C to +50°C
- Material: UV- and shock-resistant polycarbonate
- Dimensions: Ø97mm x H 103mm
✅ Trust the PD4-M-1C-FC for wide-area presence detection – flush-mounted, highly sensitive, and built for efficient lighting control in large interior spaces!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Photocell | Y |
| C/w Mounting Bracket | Y |
| Ean Code | 4007529925858 |
| Range | BEG PD |
| Product | Occupancy Detector |
| Type | PIR |
| Dimmable | N |
| Ingress Protection | IP20 |
| Colour | White |
| Length | 97 mm |
| Detection Distance | 24 Metres |
| Detection Angle | 360 Degrees |
| Mounting | Flush |
| Time Lag Range | 15sec-30min |
| Material | Polycarbonate |
| Width | 97 mm |
| Depth | 103 mm |
| Finish | Matt |
| C/w Pir | Y |
| Delay Time Range | 15sec-30min |
| C/w Cable | N |
| Number Of Channels | 1 |
| Supply Voltage | 110-240 V |
| Maximum Load (w) | 2300 W |
