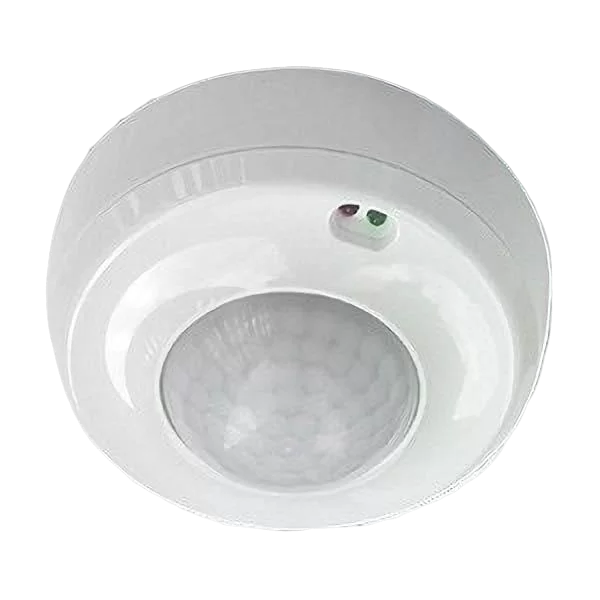

BEG Luxomat 92550 PD2-M-1C-SM White Polycarbonate Single Channel Master Surface Ceiling Mounting 360° PIR Presence Detector 2300W IP20 230V Dia ⌀: 98mm x H: 50mm
92550
Range Options
|
92144 | 360°, 2300W, IP44 | £81.00 £67.50 |
in cart
|
|
92190 | 360°, 2300W, IP23 | £42.53 £35.44 |
in cart
|
|
92196 | 360°, 2300W, IP23, Flush | £45.23 £37.69 |
in cart
|
|
92550 | 360°, 2300W, Master | £66.16 £55.13 |
in cart
|
|
92565 | 360°, 2300W, Flush, Master | £63.44 £52.87 |
in cart
|
|
92585 | 360°, 2300W, Flush | £99.90 £83.25 |
in cart
|
|
92902 | 360°, 1000W, Flush | £50.63 £42.19 |
in cart
|
PD2-M-1C-SM White 360° PIR Presence Detector – Master Version, Single Channel, Surface Ceiling Mount, IP20, 230V
The PD2-M-1C-SM is a master PIR presence detector designed for high-sensitivity motion detection in interior spaces. Suitable for surface ceiling mounting, it features a circular 360° detection field and supports the connection of unlimited slave units, making it ideal for scalable lighting control in larger areas.
- 360° High-Sensitivity Detection: Ensures accurate presence detection across the entire room for responsive lighting control.
- Master Unit with Slave Compatibility: Can be extended with unlimited slave detectors for broad area coverage in open-plan or multi-zone layouts.
- Single Channel Output: Switches one lighting circuit using a potential-free high-performance relay compatible with all light types.
- Surface Ceiling Mounting: Quick and clean installation ideal for offices, corridors, and commercial interiors.
- Remote Controllable: Offers convenient configuration and adjustment using compatible remote control devices.
- Serial Impulse Function: Provides versatile switching options for flexible lighting control setups.
Technical Specification
- Power Supply: 230V
- Mounting Type: Surface ceiling mount
- Detection Angle: 360° circular
- Channels: 1 switching channel (potential-free)
- Switching Capacity: Up to 2300W
- Slave Expansion: Unlimited slave units connectable
- Control: Remote controllable
- Protection Rating: IP20
- Material: White polycarbonate
- Dimensions: Ø98mm x H 50mm
✅ Choose the PD2-M-1C-SM for scalable, high-performance presence detection – ideal for smart lighting control in large or shared interior spaces!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| C/w Photocell | Y |
| C/w Mounting Bracket | Y |
| Ean Code | 4007529925506 |
| Range | BEG PD |
| Product | Occupancy Detector |
| Type | PIR |
| Dimmable | N |
| Ingress Protection | IP20 |
| Colour | White |
| Length | 98 mm |
| Detection Distance | 10 Metres |
| Detection Angle | 360 Degrees |
| Mounting | Surface |
| Time Lag Range | 15sec-30min |
| Material | Polycarbonate |
| Width | 98 mm |
| Depth | 47 mm |
| Finish | Matt |
| Qualifier | Micro |
| C/w Pir | Y |
| Delay Time Range | 15sec-30min |
| C/w Cable | N |
| Number Of Channels | 1 |
| Supply Voltage | 110-240 V |
| Maximum Load (w) | 2300 W |
