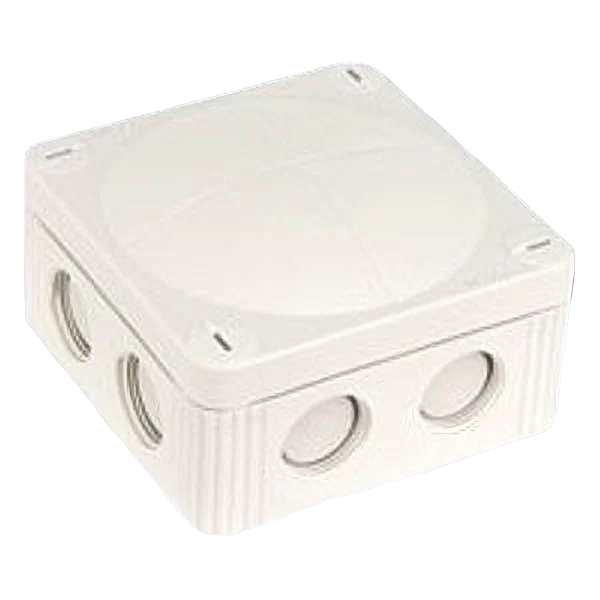

Wiska 60611 Combi 308/5 White Waterproof Junction Box L:85mm x W:85mm x D:51mm With 5 Pole 4.0mm² Screw Terminal & 8 Self Sealing Cable Inlets IP66 32A
60611
Range Options
Combi 308/5 White Waterproof Junction Box – 85mm x 85mm x 51mm, 5-Pole 4.0mm² Terminal, IP66 Rated
The Combi 308/5 White Junction Box offers a compact, IP66-rated solution for secure electrical terminations in both indoor and outdoor settings. Supplied with a 5-pole 4.0mm² screw terminal and 8 self-sealing inlets, this enclosure provides quick, tool-free cable entry and robust protection in clean and aesthetic environments.
- IP66 Weatherproof Protection: Certified to EN 60529, offering complete protection against dust and powerful water jets—ideal for exposed locations.
- Integrated Terminal Block: Includes a 5-pole 4.0mm² screw terminal rated at 32A, supporting 400V low-voltage cable connections.
- Self-Sealing Cable Inlets: 8 elastic membrane inlets with integrated M20 threads—no locknuts or glands required for fast installation.
- Durable, Flame-Retardant Casing: White glass fibre-reinforced polypropylene housing with thermoplastic elastomer sealing; glow wire tested to 750°C (EN 60695-2-11).
- Flexible Fixing Options: Supplied with a mounting clip or can be installed via 4 internal fixing points located outside the sealing zone.
Technical Specification
- Dimensions: 85mm (L) x 85mm (W) x 51mm (D)
- Ingress Protection: IP66 (EN 60529)
- Current Rating: 32A
- Voltage Rating: 400V
- Terminal Capacity: 5-pole, 4.0mm² screw terminal
- Material: Glass fibre-reinforced polypropylene
- Seal Material: Thermoplastic elastomer
- Temperature Range: -30°C to +100°C (intermittent up to 120°C)
- Cable Entries: 8 self-sealing inlets with M20 threads
- Fixing: Mounting clip or 4 internal mounting holes (outside sealing area)
✅ Choose the Combi 308/5 White Junction Box for clean, compact, and IP66-rated cable terminations in both modern indoor and outdoor environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Clamping Area | 4 mm2 |
| Ean Code | 4007685022293 |
| Range | COMBI 308/5 |
| Product | Weatherproof Junction Boxes & Enclosures |
| Type | Square |
| Ingress Protection | IP67 |
| Colour | White |
| Length | 85 mm |
| Pole Configuration | 5 Pole |
| Material | Polypropylene |
| Width | 85 mm |
| Depth | 51 mm |
| Current Rating | 32 A |
| Standards | EN 60695-2-11 EN 60529 |
| Number Of Poles | 5P |
| Rated Operational Voltage | 400 V |
| Operating Temperature Range | -5 to 60 Degrees C Degrees C |
| Description | Includes (4) Internal Opening (4) Captive Quick-Release Lid Screw 3 to 12mm Cable |
| Face Colour | White |
