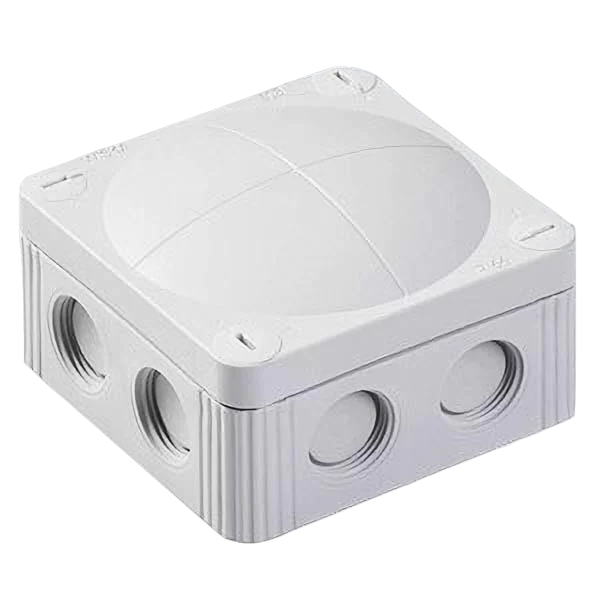

Wiska 60401 Combi 308/5 Grey Waterproof Junction Box L:85mm x W:85mm x D:51mm With 5 Pole 4.0mm² Screw Terminal & 8 Self Sealing Cable Inlets IP66 32A
60401
Range Options
Combi 308/5 Grey Waterproof Junction Box – 85mm x 85mm x 51mm, 5-Pole 4.0mm² Terminal, IP66 Rated
The Combi 308/5 Grey Junction Box is a compact, weather-resistant enclosure designed for secure electrical terminations in both indoor and outdoor environments. With 8 self-sealing inlets, a 5-pole 4.0mm² screw terminal, and IP66-rated protection, this box offers a fast, reliable, and clean installation for power and control wiring systems.
- IP66 Rated Protection: Fully sealed to EN 60529 for protection against dust and powerful water jets, making it ideal for outdoor or industrial use.
- Integrated Terminal Block: Includes a 5-pole, 4.0mm² screw terminal rated at 32A for secure, low-voltage connections up to 400V.
- Tool-Free Cable Entry: 8 self-sealing elastic membranes with integrated M20 threads—no glands or locknuts required.
- Durable Flame-Retardant Housing: Manufactured from glass fibre-reinforced polypropylene with thermoplastic elastomer seals; glow wire tested to 750°C.
- Flexible Mounting Options: Includes snap-on mounting clip or 4 internal fixing points located outside the sealing zone.
Technical Specification
- Dimensions: 85mm (L) x 85mm (W) x 51mm (D)
- Ingress Protection: IP66 (EN 60529)
- Current Rating: 32A
- Voltage Rating: 400V
- Terminal Capacity: 5-pole, 4.0mm² screw terminal
- Material: Glass fibre-reinforced polypropylene
- Seal Material: Thermoplastic elastomer
- Temperature Range: -30°C to +100°C (intermittent up to 120°C)
- Cable Entries: 8 self-sealing inlets with M20 threads
- Fixing: Mounting clip or 4 internal mounting holes (outside the sealing area)
✅ Choose the Combi 308/5 Grey Junction Box for compact, IP66-rated cable terminations and fast, tool-free installation in demanding environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 4007685018302 |
| Range | COMBI 308/5 |
| Product | Weatherproof Junction Boxes & Enclosures |
| Type | Square |
| Ingress Protection | IP67 |
| Colour | Grey |
| Length | 85 mm |
| Earth Included | Y |
| Pole Configuration | 5 Pole |
| Material | Polypropylene |
| Current Rating | 32 A |
| Standards | EN 60529 EN 60695-2 |
| Fixings Included | Y |
| Knockouts Included? | Y |
| Number Of Knockouts | 8 |
| Knockout Shape | Round |
| Height | 85 mm |
| Nominal Width | 51 mm |
| Face Colour | Grey |
| Included Fixings | Mounting Clip |
