Flexicon FPA20-M20B Black Nylon Type FPA Straight Fitting Fixed External Thread IP66 M20 20mm
FPA20-M20B
Range Options
|
FPA16-M16-90B | 16mm, 90? Elbow, Black | £2.89 £2.41 |
in cart
|
|
FPA16-M16B | 16mm, Straight Fixed, Black | £2.11 £1.76 |
in cart
|
|
FPA20-M20-90B | 20mm, 90? Elbow, Black | £2.93 £2.44 |
in cart
|
|
FPA20-M20B | 20mm, Straight Fixed, Black | £2.24 £1.87 |
in cart
|
|
FPA21-M20-90B | 21mm, 90? Elbow, Black | £3.44 £2.87 |
in cart
|
|
FPA21-M20B | 21mm, Straight Fixed, Black | £2.30 £1.92 |
in cart
|
|
FPA25-M25-90B | 25mm, 90? Elbow, Black | £5.53 £4.61 |
in cart
|
|
FPA25-M25B | 25mm, Straight Fixed, Black | £2.88 £2.40 |
in cart
|
|
FPA28-M25-90B | 28mm, 90? Elbow, Black | £5.38 £4.48 |
in cart
|
|
FPA28-M25B | 28mm, Straight Fixed, Black | £3.06 £2.55 |
in cart
|

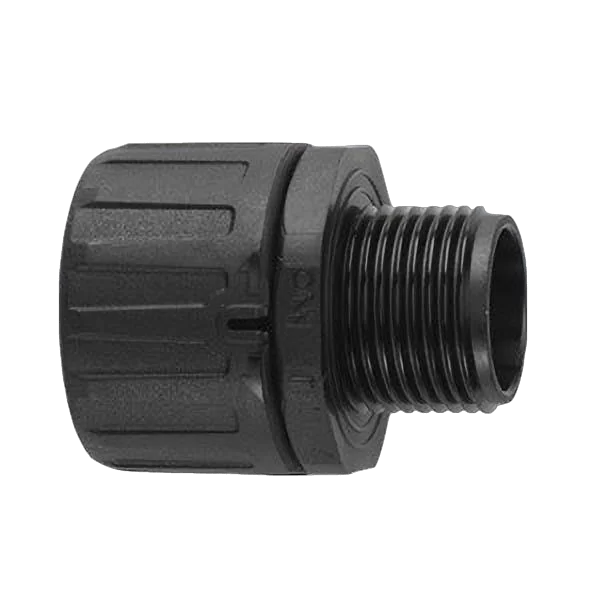

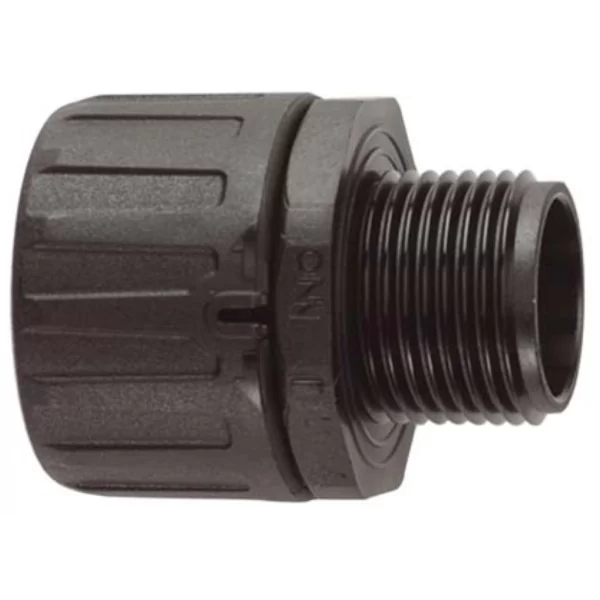

Flexicon FPA20-M20B Type FPA Nylon Straight Connector – Fixed External Thread for 20mm FPA Flexible Conduit (IP66)
The Flexicon FPA20-M20B is a one-piece, fast-fit straight connector designed for terminating 20mm FPA flexible conduit into M20 knockouts or threaded entries. Made from durable PA66 nylon and offering IP66 ingress protection, it provides a secure and professional solution for demanding electrical installations.
- Durable PA66 Nylon Construction: High-strength moulded body offers excellent impact resistance and long service life.
- One-Piece Fast-Fit Design: Simplifies installation with no additional components required.
- Fixed M20 External Thread: Designed for easy connection to M20 knockouts or threaded entries.
- IP66 Rated Protection: Fully sealed against dust and powerful water jets for indoor and outdoor use.
- FPA Conduit System Compatible: Suitable for use with 20mm FPA flexible conduits in industrial and commercial settings.
Technical Specification
- Type: Straight Fixed External Thread Connector
- Material: Nylon (PA66)
- Conduit Size: 20mm (FPA Type)
- Thread Size: M20
- IP Rating: IP66
✅ Choose the Flexicon FPA20-M20B for a secure, fast-fit conduit connection with reliable environmental protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5052446007988 |
| Range | Atkore FPA Type |
| Product | Flexible Conduit Connectors |
| Type | Fixed |
| Ingress Protection | IP66 |
| Colour | Black |
| Diameter | 20 mm |
| Material | Nylon |
| Thread Type | Male |
| Standards | ROHS UL (Canada and US) REACH LR BS EN IEC 61386 NFPA 130 EN 45545-2 |
| Ce Approved | Y |
| Nominal Width | 20 mm |
| Normal Operating Minimum Temperature | -50 Degrees C |
| Normal Operating Maximum Temperature | 135 Degrees C |
