Flexicon FPA16-M16B Black Nylon Type FPA Straight Fitting Fixed External Thread IP66 M16 16mm
FPA16-M16B
Range Options
|
FPA16-M16-90B | 16mm, 90? Elbow, Black | £2.89 £2.41 |
in cart
|
|
FPA16-M16B | 16mm, Straight Fixed, Black | £2.11 £1.76 |
in cart
|
|
FPA20-M20-90B | 20mm, 90? Elbow, Black | £2.93 £2.44 |
in cart
|
|
FPA20-M20B | 20mm, Straight Fixed, Black | £2.24 £1.87 |
in cart
|
|
FPA21-M20-90B | 21mm, 90? Elbow, Black | £3.44 £2.87 |
in cart
|
|
FPA21-M20B | 21mm, Straight Fixed, Black | £2.30 £1.92 |
in cart
|
|
FPA25-M25-90B | 25mm, 90? Elbow, Black | £5.53 £4.61 |
in cart
|
|
FPA25-M25B | 25mm, Straight Fixed, Black | £2.88 £2.40 |
in cart
|
|
FPA28-M25-90B | 28mm, 90? Elbow, Black | £5.38 £4.48 |
in cart
|
|
FPA28-M25B | 28mm, Straight Fixed, Black | £3.06 £2.55 |
in cart
|

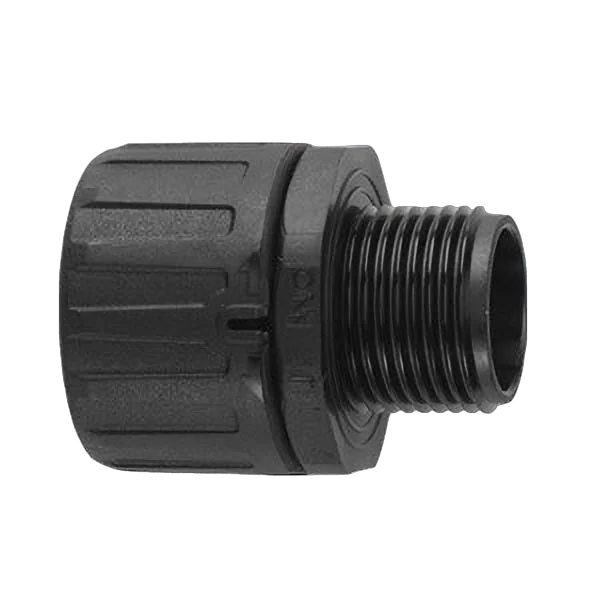

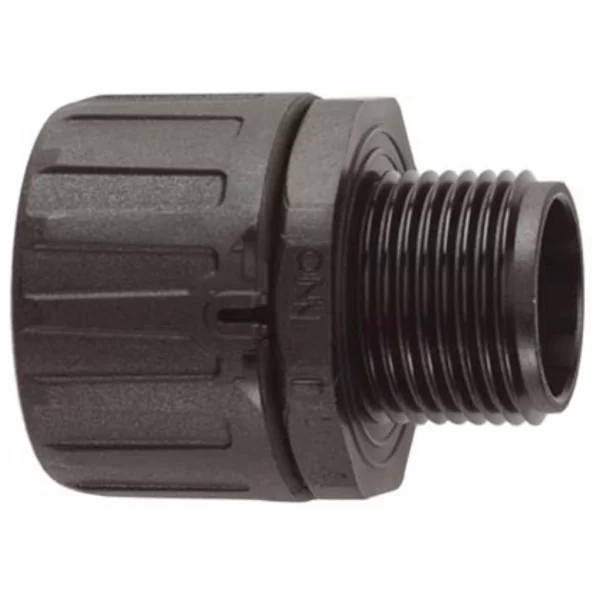

Flexicon FPA16-M16B Type FPA Nylon Straight Connector – Fixed External Thread for 16mm FPA Flexible Conduit (IP66)
The Flexicon FPA16-M16B is a durable, one-piece straight connector designed for quick installation of 16mm FPA flexible conduit into M16 knockouts or threaded entries. Moulded from high-quality PA66 nylon and rated IP66, it delivers reliable, tamper-resistant performance for professional electrical applications.
- Robust Nylon Construction: Made from PA66 for mechanical strength, impact resistance, and long-term durability.
- Fast-Fit One-Piece Design: Pre-assembled straight fitting allows quick and secure installation with minimal components.
- Fixed M16 External Thread: Suitable for both knockout holes and pre-threaded entries, offering installation flexibility.
- IP66 Rated Sealing: Provides excellent resistance to dust and water ingress for use in tough environments.
- FPA System Compatible: Designed specifically for use with 16mm FPA flexible conduit systems.
Technical Specification
- Type: Straight Fixed External Thread Connector
- Material: Nylon (PA66)
- Conduit Size: 16mm (FPA Type)
- Thread Size: M16
- IP Rating: IP66
✅ Use the Flexicon FPA16-M16B for a fast, secure, and weather-resistant connection in FPA conduit installations.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Thread Material | Brass |
| Ean Code | 5052446007421 |
| Range | Atkore FPA Type |
| Product | Flexible Conduit Connectors |
| Type | Fixed |
| Ingress Protection | IP66 |
| Colour | Black |
| Diameter | 16 mm |
| Material | Nylon |
| Thread Type | Male |
| Standards | ROHS UL (Canada and US) REACH LR BS EN IEC 61386 NFPA 130 EN 45545-2 |
| Ce Approved | Y |
| Nominal Width | 16 mm |
| Normal Operating Minimum Temperature | -50 Degrees C |
| Normal Operating Maximum Temperature | 135 Degrees C |
