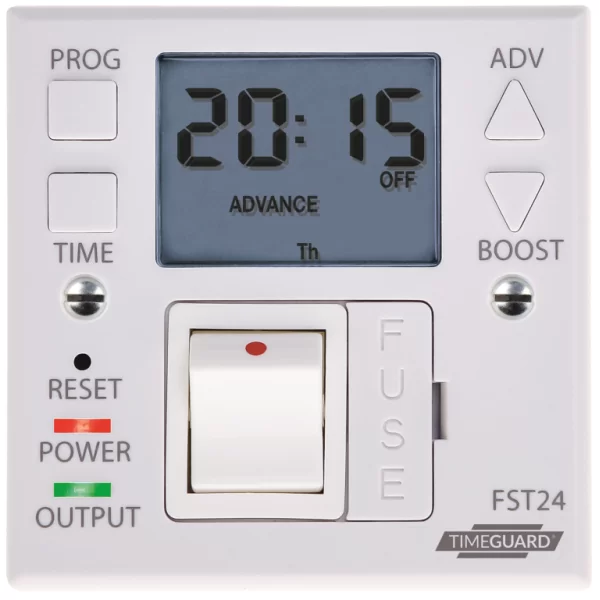

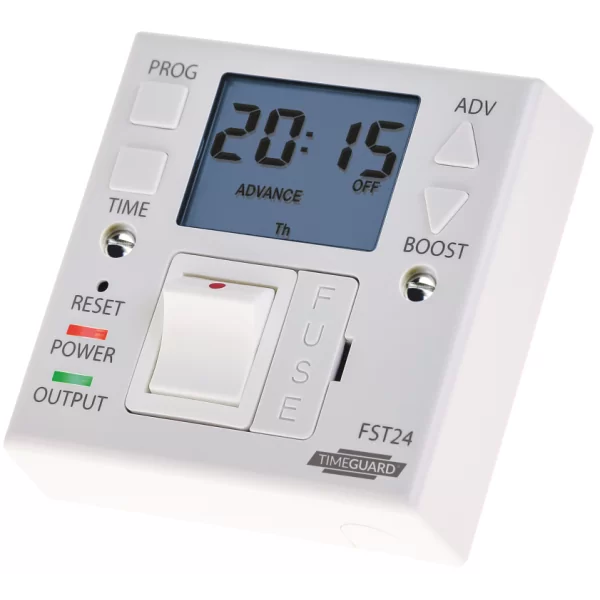

Timeguard FST24 White 24 Hour Double Pole Fused Spur Time Switch With 4 ON & OFF Programmes Per Day & 2 Hour Boost 13A
FST24
Timeguard FST24 24-Hour Fused Spur Time Switch – Double Pole, 4 Daily Programmes & Boost Function, Ideal for Fixed Appliance Control
The Timeguard FST24 is a 24-hour digital fused spur time switch designed for fixed appliances requiring timed control. With a double pole switching mechanism, 4 ON/OFF programmes per day, and a convenient 2-hour boost feature, it offers reliability and flexibility for professional electrical installations.
- 4 Daily ON/OFF Programmes: Set up to 4 timed switching periods per day for tailored appliance control.
- 2-Hour Manual Boost: Built-in boost button provides temporary override without altering programme settings.
- Double Pole Switching: Safely isolates both live and neutral, ensuring compliance and enhanced safety.
- 13A Fused Spur: Integrates protection for fixed appliances, ideal for heaters, towel rails, and water heaters.
- Compact, Professional Design: Neat flush-mounted unit in standard single-gang format for clean installations.
Technical Specification
- Timer Mode: 24 Hour Digital
- Switch Type: Double Pole
- Switch Rating: 13A (3kW resistive)
- Boost Function: 2-Hour Manual Boost
- Mounting: Single-gang flush or surface
✅ Trust the Timeguard FST24 for safe, programmable control of fixed appliances with daily precision and manual override flexibility!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5012483012604 |
| Override Facility | Y |
| Reserve Power | 672 Hours |
| Product | Time Switch |
| Type | Fused Spur |
| Ingress Protection | IP20 |
| Colour | White |
| Length | 85 mm |
| Warranty | 3 Years |
| Unit Weight | 0.114 kg |
| Pole Configuration | 2NO |
| Mounting | Flush/Surface |
| Material | Polycarbonate |
| Width | 85 mm |
| Depth | 43 mm |
| Current Rating | 13 A |
| Standards | BS 1362 |
| Delay Time Range | 1 Minute |
| Display | LCD |
| Ambient Temperature Range | 0|40 Degrees C |
| Voltage Type | AC |
| Number Of Channels | 1 |
| Programming | 24hr/7 day |
| Supply Voltage | 230 V |
