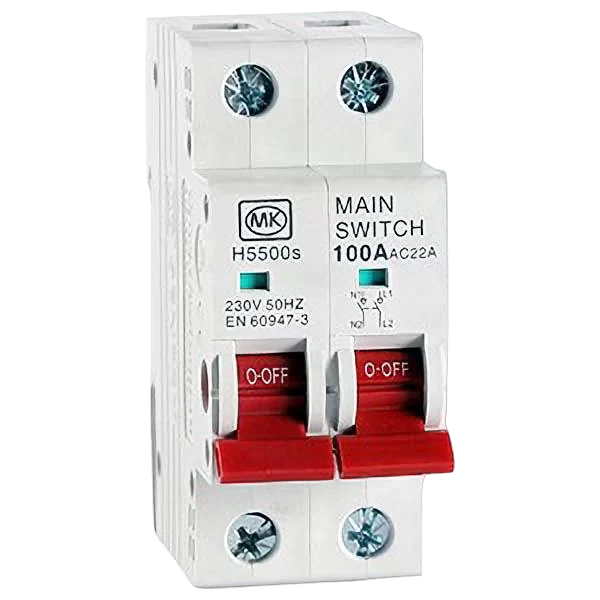

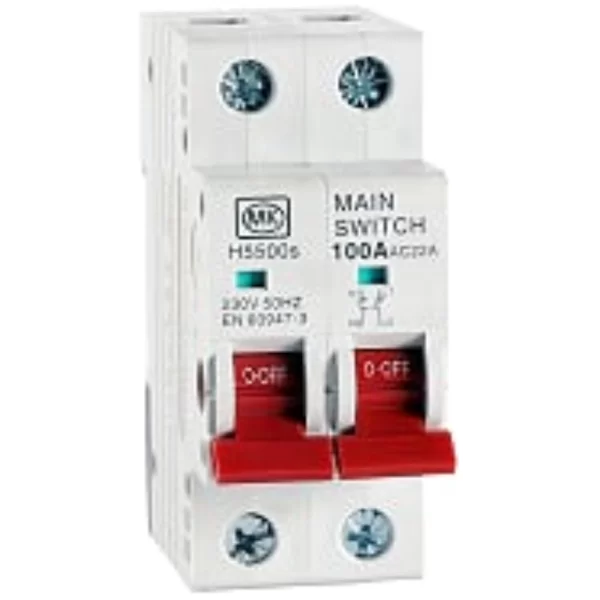

MK Sentry H5500S 2 Module Switch Disconnector 100A

MK Sentry H5500S 2 Module Switch Disconnector – 100A, AC22A Rated for Resistive and Inductive Loads

The MK Sentry H5500S is a 100A 2 Module Switch Disconnector, designed for safe isolation and disconnection of electrical circuits. Suitable for use in Sentry Consumer Units or 2- and 4-module enclosures, it supports both direct-to-busbar and cable-in/cable-out installations. Built to handle resistive and inductive loads, it meets the requirements of AC22A duty and complies with BS EN 60947-3.

• AC22A Duty Rated: Suitable for switching resistive and inductive loads in commercial and industrial installations.
• Flexible Installation: Accepts direct connection to busbar or cable-in/cable-out setups for versatile wiring options.
• Positive Contact Indication: Provides reliable status confirmation, compliant with 17th Edition IEE Wiring Regulations (537.2.2.2 and 537.3.2.2).
• Compact Form: 2-module width fits neatly into MK Sentry consumer units or modular enclosures.
• High Cable Capacity: Accommodates conductors up to 50mm², ideal for high-load applications.

Technical Specification

• Rated Current: 100A
• Modules: 2
• Duty Category: AC22A
• Standards: BS EN 60947-3: 1999
• Cable Capacity: Up to 50mm²
• Dimensions: 81 x 36 x 76mm

✅ Choose the MK Sentry H5500S for reliable, regulation-compliant circuit isolation in high-load consumer or modular installations!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
