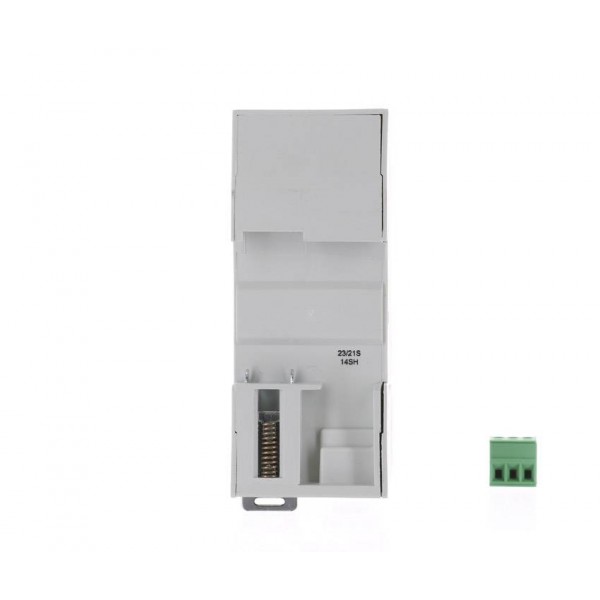

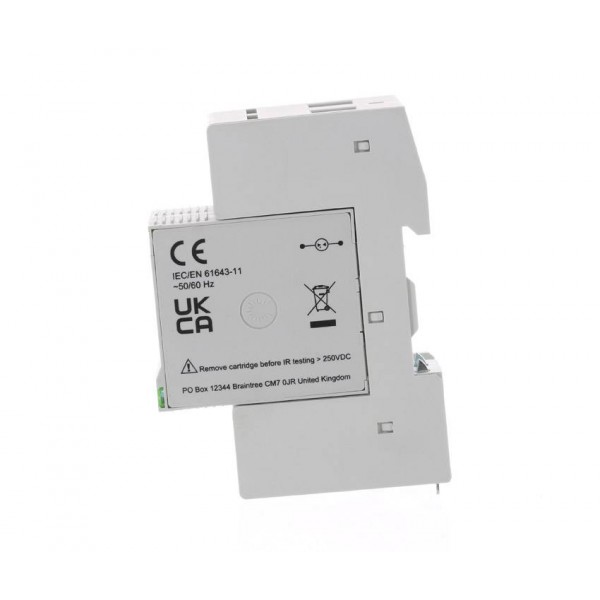

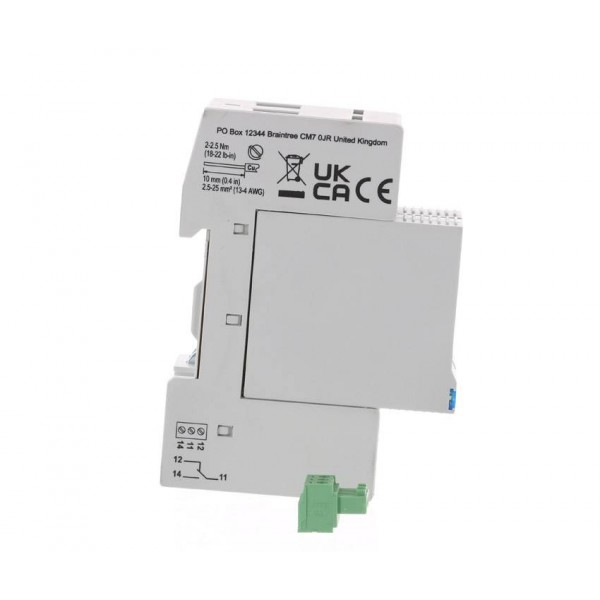

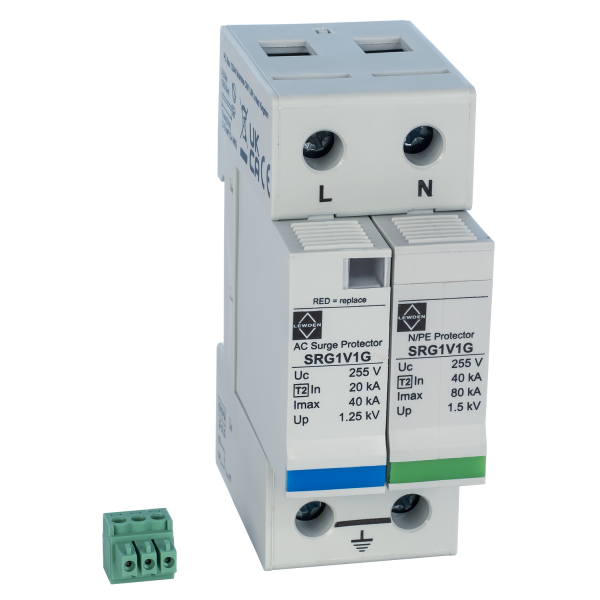

Lewden SRG1V1G 2 Module 1Ph Type 2 TT/TN-S Surge Protection Device
SRG1V1G
2 Module Single-Phase Type 2 Surge Protection Device – TT/TN-S Systems
This 2-module single-phase surge protection device (SPD) is designed to protect electrical installations from transient overvoltages caused by switching events and indirect lightning strikes. Suitable for TT and TN-S earthing systems, it provides reliable surge suppression for residential, commercial, and industrial applications.
- Type 2 Surge Protection: Shields electrical systems from transient overvoltages due to switching surges and indirect lightning strikes.
- TT & TN-S System Compatibility: Designed for use in single-phase installations with these earthing systems.
- Single-Phase Protection: Ensures the safety of electrical circuits and connected devices.
- 2-Module Compact Design: Allows for space-efficient installation in consumer units and distribution boards.
- Reliable Surge Mitigation: Helps extend the lifespan of electrical devices by limiting voltage spikes.
Technical Specification
- Type: Type 2 Surge Protection Device (SPD)
- System Compatibility: TT & TN-S earthing systems
- Phase: Single-Phase (1Ph)
- Module Size: 2 Modules
- Application: Residential, commercial & industrial installations
✅ Protect your electrical system from transient overvoltages with this high-performance Type 2 surge protection device!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5026992039960 |
| Alarm Output | N |
| Status Indicator | Y |
| Plug-in Module | Y |
| Surge Protector Type | Type 2 |
| Maximum Cable Size | 35 mm2 |
| Nominal Voltage | 230VAC V |
| Nominal Discharge Current | 20 kA |
| Maximum Discharge Current | 50 kA |
| Supply Frequency | 50-60 Hz |
| Minimum Cable Size | 10 mm2 |
| Product | Surge Protection Device |
| Type | Type 2 |
| Ingress Protection | IP20 |
| Colour | Black |
| Unit Weight | 0.166 kg |
| Pole Configuration | Double Pole (2P) |
| Material | Plastic |
| Width | 36 mm |
| Depth | 72 mm |
| Standards | IEC 61643-11:2011 EN 61643-11:2012 |
| Ce Approved | Y |
| Number Of Poles | Double Pole (2P) |
| Mounting Type | DIN Rail |
| Rated Short Circuit Withstand Current | 60 kA |
| Enclosed | N |
| Height | 94 mm |
| Number Of Modules | 2 |
| Voltage Type | AC |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 80 Degrees C |
