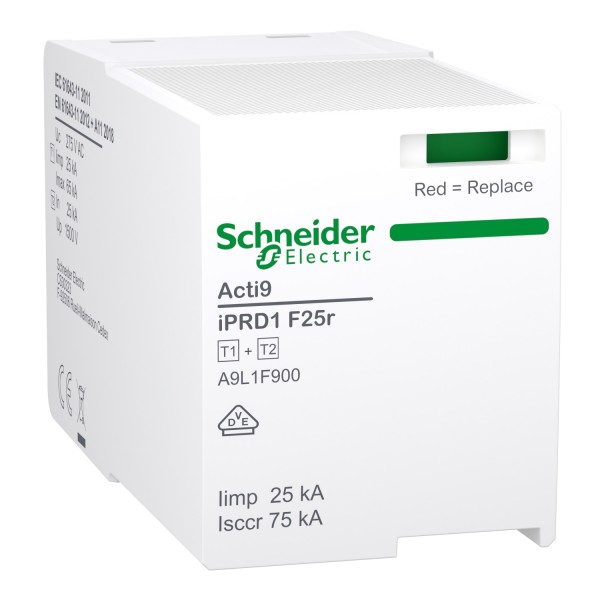

Schneider Electric A9L1F900 Acti9 Type 2 Cartridge iPRD1 F25r T1+2 25kA w/Fuse 3P / 3PN 275V L-N

Schneider Electric Acti9 iPRD1 F25r Type 1+2 Replacement Cartridge – Reliable L–N Surge Protection with Integrated Fuse

The Schneider Electric A9L1F900 Acti9 iPRD1 F25r Replacement Cartridge is designed for use with 3P and 3P+N iPRD1 F25r surge protection devices. Featuring an integrated backup fuse and Type 1+2 protection, this pluggable cartridge ensures safe, efficient, and easy maintenance for professional-grade electrical installations.

• Type 1+2 Cartridge Protection: Provides comprehensive surge defence in L–N mode, compliant with EN 61643-11:2012+A11:2018 standards.
• Integrated Backup Fuse: Self-protected design eliminates the need for an external disconnector, simplifying installation and enhancing safety.
• Front-Face Status Indicator: Green/red visual indicator for clear, instant monitoring of device condition and performance.
• High Surge Handling Capacity: Withstands up to 65kA maximum discharge current and 25kA impulse current for robust surge protection.
• Flexible Earthing Compatibility: Suitable for TN-C, TN-S, and TT systems, ideal for a wide range of industrial and commercial environments.

Technical Specification

• Configuration: L–N Cartridge for iPRD1 F25r SPD (3P / 3P+N)
• Nominal Discharge Current (In): 25kA
• Maximum Discharge Current (Imax): 65kA
• Impulse Current (Iimp): 25kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 36(W) × 45(H) × 73.5(D) mm | Weight: 194g

✅ Maintain superior surge protection performance with the Schneider Electric Acti9 iPRD1 F25r L–N Replacement Cartridge – durable, fuse-integrated, and designed for professional reliability.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
