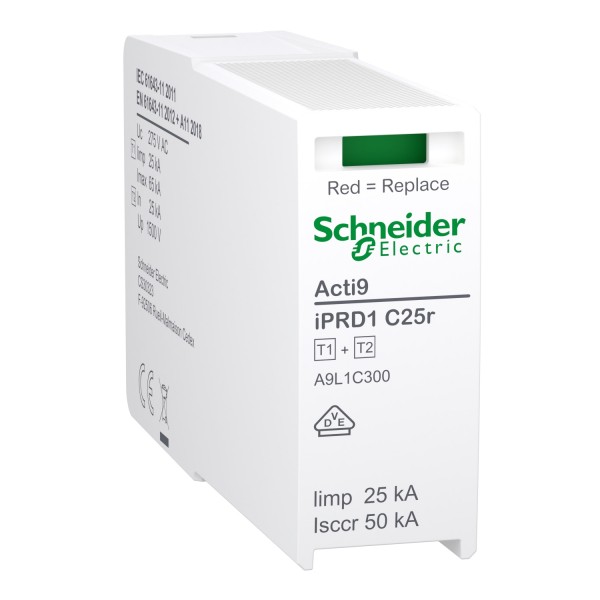

Schneider Electric A9L1C300 Acti9 Type 2 iPRD1 C25r Cartridge for surge arrester iPRD1 C25r 3P type 1+2 without fuse

Schneider Electric Acti9 iPRD1 C25r Type 1+2 Replacement Cartridge – Reliable L–PEN Protection for Compact 3P Devices

The Schneider Electric A9L1C300 Acti9 iPRD1 C25r Replacement Cartridge is designed for 3P compact iPRD1 C25r surge protection devices. Offering Type 1+2 surge protection in L–PEN mode, this pluggable cartridge provides easy maintenance, robust performance, and long-term reliability in TN-C electrical systems.

• Type 1+2 Cartridge Protection: Provides strong surge and transient voltage protection, fully compliant with EN 61643-11:2012+A11:2018 standards.
• Plug-In Modular Design: Allows quick, tool-free replacement with a secure anti-vibration locking clip for stability and reliability.
• Front-Face Status Indicator: Clear green/red visual indicator for simple monitoring of cartridge condition and operation.
• High Surge Handling Capacity: Supports up to 65kA maximum discharge current for dependable performance under heavy surge conditions.
• TN-C System Compatibility: Specifically designed for use in TN-C networks, providing effective L–PEN mode protection.

Technical Specification

• Configuration: L–PEN Cartridge for iPRD1 C25r SPD (3P)
• Nominal Discharge Current (In): 25kA
• Maximum Discharge Current (Imax): 65kA
• Impulse Current (Iimp): 25kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 18(W) × 45(H) × 73.5(D) mm | Weight: 105g

✅ Ensure dependable surge protection and simple maintenance with the Schneider Electric Acti9 iPRD1 C25r L–PEN Replacement Cartridge – compact, efficient, and built for professional use.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
