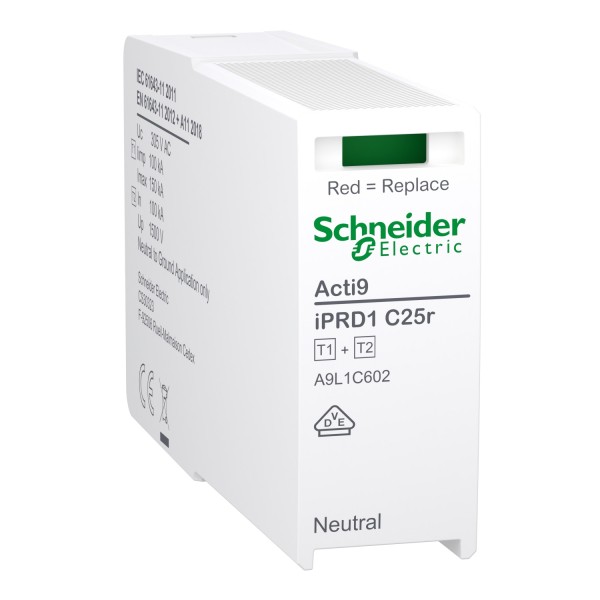

Schneider Electric A9L1C602 Acti9 Type 2 Plug iPRD1 C25r T1+2 25kA Compact 3P+N 275V N-PE

Schneider Electric Acti9 iPRD1 C25r Type 1+2 N–PE Replacement Cartridge – High-Performance Surge Protection for Compact 3P+N Devices

The Schneider Electric A9L1C602 Acti9 iPRD1 C25r Replacement Cartridge is a compact, pluggable module designed for use with 3P and 3P+N iPRD1 C25r or F25r surge protection devices. This Type 1+2 N–PE cartridge delivers exceptional surge handling capability and easy maintenance, ensuring long-term reliability in professional electrical installations.

• Type 1+2 Cartridge Protection: Provides superior N–PE overvoltage protection in differential mode, compliant with EN 61643-11:2012+A11:2018 standards.
• Modular Plug-In Design: Enables quick and secure replacement with anti-vibration locking for stable, reliable operation.
• Integrated Status Indicator: Front-face green/red flag for clear visibility of operational state and maintenance needs.
• High Surge Capacity: Withstands up to 150kA maximum discharge current and 100kA impulse current for heavy-duty protection.
• Wide System Compatibility: Suitable for TT and TN-S earthing systems, ideal for industrial and commercial surge protection setups.

Technical Specification

• Configuration: N–PE Cartridge for iPRD1 C25r/F25r SPD (3P+N)
• Nominal Discharge Current (In): 100kA
• Maximum Discharge Current (Imax): 150kA
• Impulse Current (Iimp): 100kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 305V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 18(W) × 45(H) × 73.5(D) mm | Weight: 115g

✅ Keep your surge protection system performing at its best with the Schneider Electric Acti9 iPRD1 C25r N–PE Replacement Cartridge – durable, compact, and engineered for professional reliability.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
