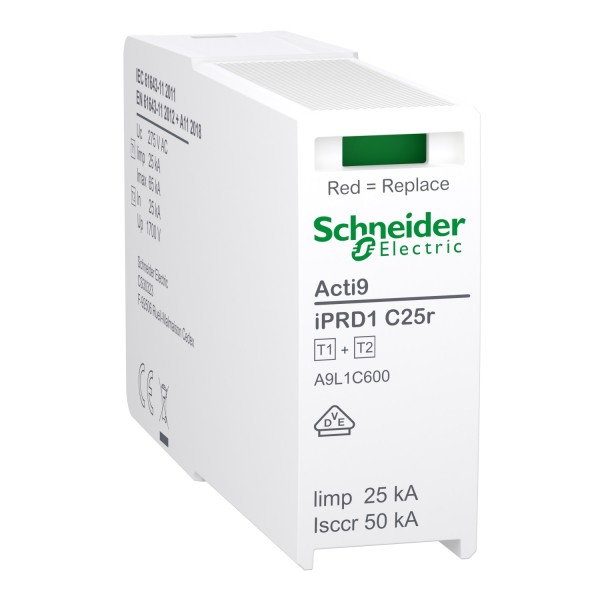

Schneider Electric A9L1C600 Acti9 Type 2 iPRD1 C25r for surge arrester iPRD1 C25r 3P+N type 1+2 L-N protection mode without fuse

Schneider Electric Acti9 iPRD1 C25r Type 1+2 L–N Replacement Cartridge – Reliable Surge Protection for Compact 3P+N Devices

The Schneider Electric A9L1C600 Acti9 iPRD1 C25r Replacement Cartridge is designed for use with compact 3P+N iPRD1 C25r surge protection devices. Offering high-performance Type 1+2 protection, this pluggable cartridge provides reliable overvoltage defence and easy maintenance for professional electrical installations in commercial and industrial settings.

• Type 1+2 Cartridge Protection: Provides robust overvoltage protection in differential mode (L–N), compliant with EN 61643-11:2012+A11:2018.
• Pluggable Modular Design: Enables quick, safe cartridge replacement without tools, ensuring fast maintenance and minimal downtime.
• Integrated Status Indicator: Front-face green/red flag for clear visual monitoring of operational condition and cartridge health.
• High Surge Capacity: Withstands up to 65kA maximum discharge current for reliable system protection in demanding applications.
• Wide Earthing Compatibility: Suitable for TN-S, TN-C, and TT earthing systems, ensuring installation flexibility across various environments.

Technical Specification

• Configuration: L–N Cartridge for iPRD1 C25r SPD (3P+N)
• Nominal Discharge Current (In): 25kA
• Maximum Discharge Current (Imax): 65kA
• Impulse Current (Iimp): 25kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 18(W) × 45(H) × 73.5(D) mm | Weight: 105g

✅ Maintain optimal surge protection performance with the Schneider Electric Acti9 iPRD1 C25r Replacement Cartridge – engineered for reliability, durability, and ease of service.
