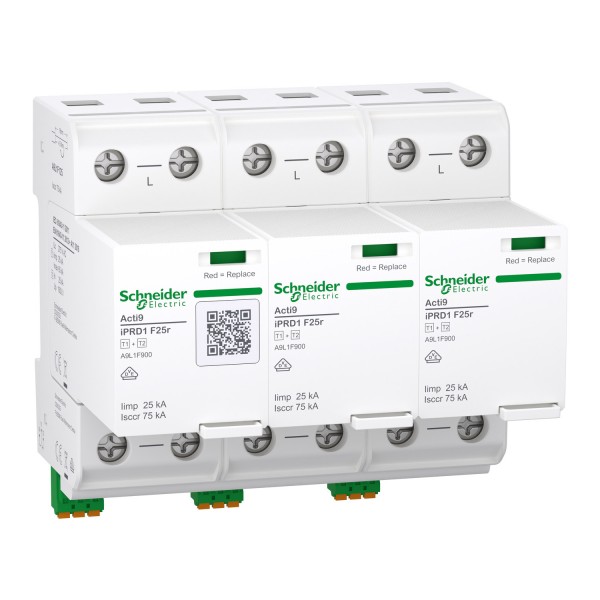

Schneider Electric A9L1F325 Acti9 Type 2 Surge Protection Device iPRD1 F25r T1+2 25kA w/Fuse 3P 275V w/remote

Schneider Electric Acti9 iPRD1 F25r 3P Type 1+2 Surge Arrester with Integrated Fuse & Remote Contact – Compact, High-Performance Protection for TN-C Systems

The Schneider Electric A9L1F325 Acti9 iPRD1 F25r Surge Arrester provides advanced Type 1+2 surge protection for TN-C electrical systems in industrial and commercial environments. Featuring an integrated backup fuse and pluggable cartridge design, this modular SPD offers maximum reliability, high discharge capacity, and simplified maintenance for long-term performance.

• Type 1+2 Combined Protection: Protects against both direct lightning strikes and indirect transient surges, compliant with EN 61643-11:2012+A11:2018.
• Integrated Backup Fuse: Self-protected configuration removes the need for external disconnectors, streamlining installation.
• Remote & Local Monitoring: Green/red indicator for visual status and remote contact for continuous system supervision.
• High Discharge Performance: Withstands up to 65kA maximum discharge current and 25kA impulse current for robust surge protection.
• Compact DIN Rail Design: Prewired, withdrawable cartridge system for quick, safe replacement and efficient space use in panels.

Technical Specification

• Configuration: 3P Modular Device
• Nominal Discharge Current (In): 25kA
• Maximum Discharge Current (Imax): 65kA
• Impulse Current (Iimp): 25kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 108(W) × 105(H) × 86(D) mm | Weight: 990g

✅ Choose the Schneider Electric Acti9 iPRD1 F25r 3P for reliable, high-capacity surge protection with integrated fuse technology — designed for professional TN-C installations.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
