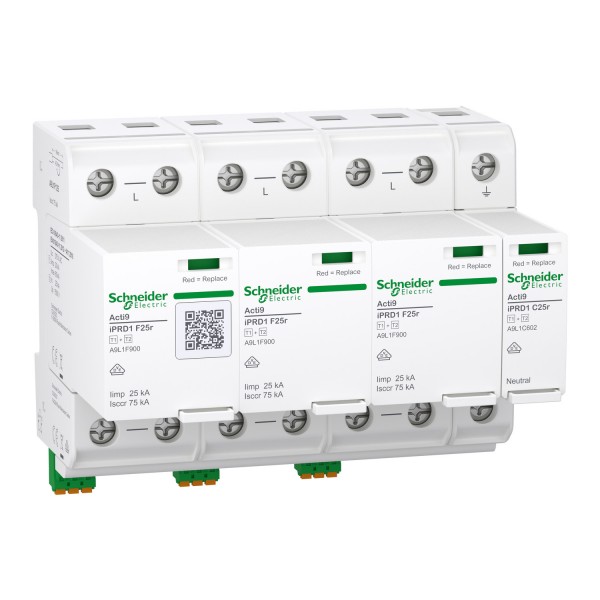

Schneider Electric A9L1F625 Acti9 Type 2 Surge Protection Device iPRD1 F25r T1+2 25kA w/Fuse 3P+N 275V w/remote

Schneider Electric Acti9 iPRD1 F25r 3P+N Type 1+2 Surge Arrester with Integrated Fuse & Remote Contact – Advanced Protection for TT and TN-S Systems

The Schneider Electric A9L1F625 Acti9 iPRD1 F25r Surge Arrester delivers high-performance Type 1+2 surge protection for industrial and commercial electrical installations. Designed with an integrated backup fuse and pluggable cartridge system, this compact SPD ensures maximum safety, reliability, and ease of maintenance while providing full protection against transient and lightning surges.

• Type 1+2 Combined Protection: Offers complete overvoltage defence against both direct lightning and indirect surges, compliant with EN 61643-11:2012+A11:2018.
• Integrated Backup Fuse: Self-protected design eliminates the need for external disconnectors, simplifying installation and enhancing safety.
• Remote & Local Monitoring: Includes green/red visual indicator and remote contact for real-time performance supervision.
• High Discharge Capacity: Handles up to 150kA maximum discharge current for robust protection in demanding electrical environments.
• Compact Modular Design: DIN rail mounted with pluggable cartridges for fast, safe replacement and minimal downtime.

Technical Specification

• Configuration: 3P+N Modular Device
• Nominal Discharge Current (In): 25kA (L–N) / 100kA (N–PE)
• Maximum Discharge Current (Imax): 65kA (L–N) / 150kA (N–PE)
• Impulse Current (Iimp): 25kA (L–N) / 100kA (N–PE)
• Voltage Protection Level (Up): 1.5kV (L–N & N–PE)
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V (L–N), 305V (N–PE)
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 126(W) × 105(H) × 86(D) mm | Weight: 1.187kg

✅ Choose the Schneider Electric Acti9 iPRD1 F25r 3P+N for compact, high-capacity surge protection with integrated fuse technology and professional-grade reliability.
