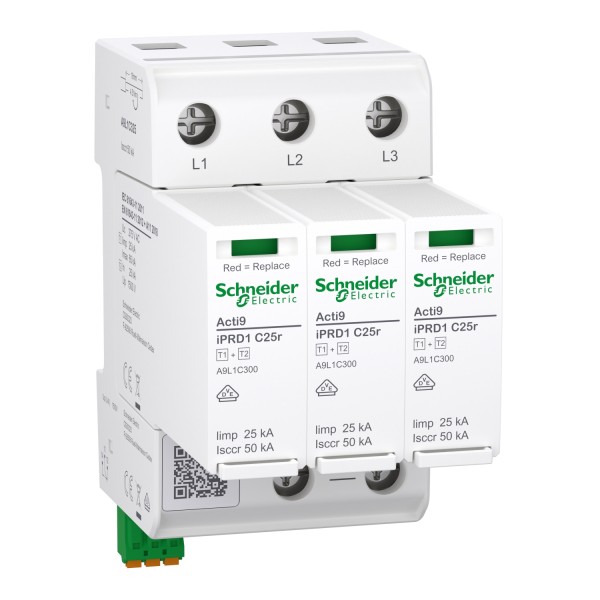

Schneider Electric A9L1C325 Acti9 Type 2 Surge Protection Device iPRD1 C25r T1+2 25kA Compact 3P 275V w/remote

Schneider Electric Acti9 iPRD1 C25r 3P Type 1+2 Surge Arrester with Remote Contact – Compact, High-Capacity Surge Protection for TN-C Systems

The Schneider Electric A9L1C325 Acti9 iPRD1 C25r Surge Arrester provides advanced Type 1+2 protection for industrial and commercial electrical installations. Designed for TN-C systems, this compact modular SPD ensures reliable protection against both direct lightning and transient overvoltages while maintaining valuable DIN rail space.

• Type 1+2 Combined Protection: Defends against lightning and transient surges, meeting EN 61643-11:2012+A11:2018 compliance standards.
• High Discharge Capacity: Handles up to 65kA maximum discharge current and 25kA impulse current for robust performance.
• Compact Modular Design: 54mm width saves valuable space on DIN rails, ideal for modern electrical panels.
• Visual and Remote Signalling: Green/red status indicator with remote contact for easy monitoring and maintenance planning.
• Quick Cartridge Replacement: Prewired, withdrawable cartridge design allows fast, safe servicing with minimal downtime.

Technical Specification

• Configuration: 3P Modular Device
• Nominal Discharge Current (In): 25kA
• Maximum Discharge Current (Imax): 65kA
• Impulse Current (Iimp): 25kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 54(W) × 105(H) × 86(D) mm | Weight: 508g

✅ Protect your TN-C electrical systems with the Schneider Electric Acti9 iPRD1 C25r 3P – a compact, high-performance surge arrester built for professional reliability.
