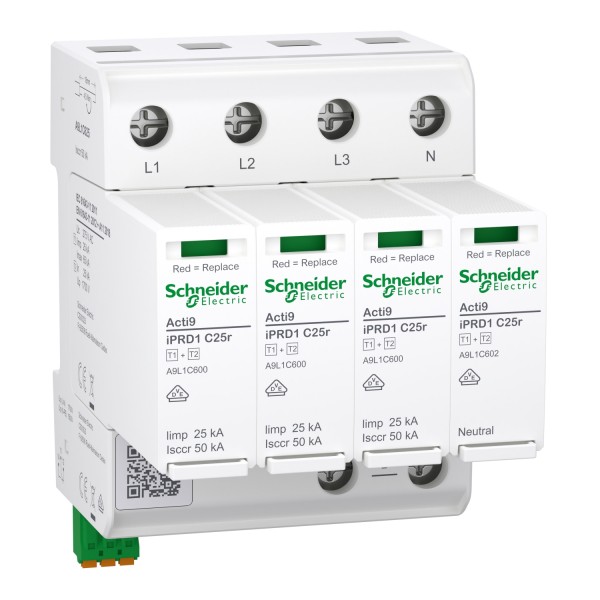

Schneider Electric A9L1C625 Acti9 Type 2 Surge Protection Device iPRD1 C25r T1+2 25kA Compact 3P+N 275V w/remote

Schneider Electric Acti9 iPRD1 C25r 3P+N Type 1+2 Surge Arrester with Remote Contact – Compact, High-Performance Protection for Industrial and Commercial Installations

The Schneider Electric A9L1C625 Acti9 iPRD1 C25r Surge Arrester provides advanced Type 1+2 surge protection, designed for reliable defence against direct and indirect lightning-induced overvoltages. Its compact modular design ensures powerful protection while optimising DIN rail space, making it ideal for demanding industrial and tertiary building installations.

• Type 1+2 Combined Protection: Provides complete overvoltage protection from lightning strikes and switching surges, compliant with EN 61643-11:2012+A11:2018.
• High Discharge Capacity: Handles up to 65kA (L–N) and 150kA (N–PE) maximum discharge current for robust system defence.
• Compact Modular Design: Space-saving 72mm width enables easy integration with other DIN rail devices.
• Front-Face Signalling & Remote Monitoring: Green/red indicator for local visual status and remote contact for system supervision.
• Easy Maintenance: Withdrawable cartridge design allows quick, safe replacement with minimal downtime.

Technical Specification

• Configuration: 3P+N Modular Device
• Nominal Discharge Current (In): 25kA (L–N) / 100kA (N–PE)
• Maximum Discharge Current (Imax): 65kA (L–N) / 150kA (N–PE)
• Impulse Current (Iimp): 25kA (L–N) / 100kA (N–PE)
• Voltage Protection Level (Up): 1.5kV (L–N & N–PE)
• Operating Voltage: 240V AC, 50/60Hz | Uc: 275V (L–N), 305V (N–PE)
• Operating Temperature: -40°C to +85°C | IP Rating: IP20
• Dimensions: 72(W) × 105(H) × 86(D) mm | Weight: 691g

✅ Safeguard your electrical installations with the Schneider Electric Acti9 iPRD1 C25r – compact, powerful, and built for lasting surge protection performance.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
