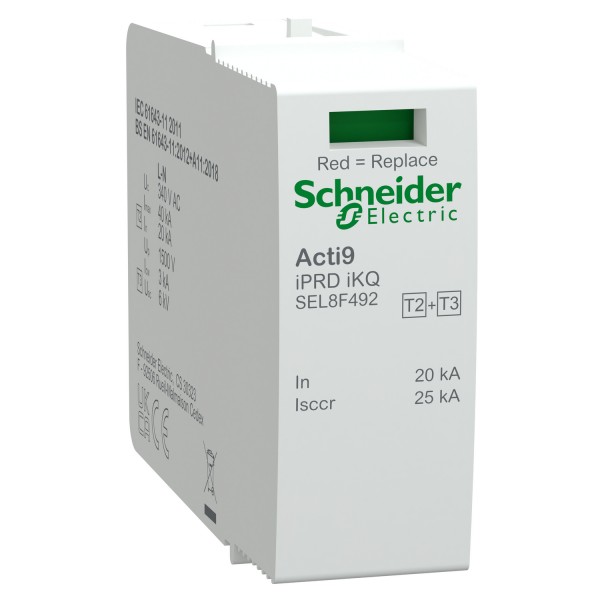

Schneider Electric SEL8F492 Acti9 Type 2+3 KQ SPD Cartridge L-N iPRD F40

Schneider Electric Acti9 iKQ Type 2+3 L–N Replacement Cartridge – Reliable Surge Protection for KQ II Load Centres

The Schneider Electric SEL8F492 Acti9 iKQ Replacement Cartridge is designed for use with 1P+N or 3P+N iPRD iKQ surge protection devices within KQ II load centres. This pluggable Type 2+3 cartridge ensures fast, secure replacement and continuous surge protection performance for professional electrical installations.

• Type 2+3 Cartridge Protection: Provides dependable overvoltage protection in differential mode (L–N), compliant with BS EN 61643-11:2012+A11:2018.
• Quick Plug-In Replacement: Modular pluggable design allows simple and secure installation with an anti-vibration locking clip.
• Integrated Status Indicator: Green/red flag for clear, instant visual feedback on cartridge condition and operation.
• Built-In Backup Fuse: Self-protected design eliminates the need for an external disconnector, simplifying system setup.
• TT & TN-S Compatibility: Suitable for a range of earthing systems, ideal for both residential and commercial applications.

Technical Specification

• Configuration: L–N Cartridge for iPRD iKQ SPD
• Nominal Discharge Current (In): 20kA
• Maximum Discharge Current (Imax): 40kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 340V
• Operating Temperature: -40°C to +85°C
• Dimensions: 18(W) × 45(H) × 58(D) mm | Weight: 68g

✅ Maintain consistent surge protection with the Schneider Electric Acti9 iKQ L–N Replacement Cartridge – engineered for quick maintenance and reliable performance in KQ II load centres.
