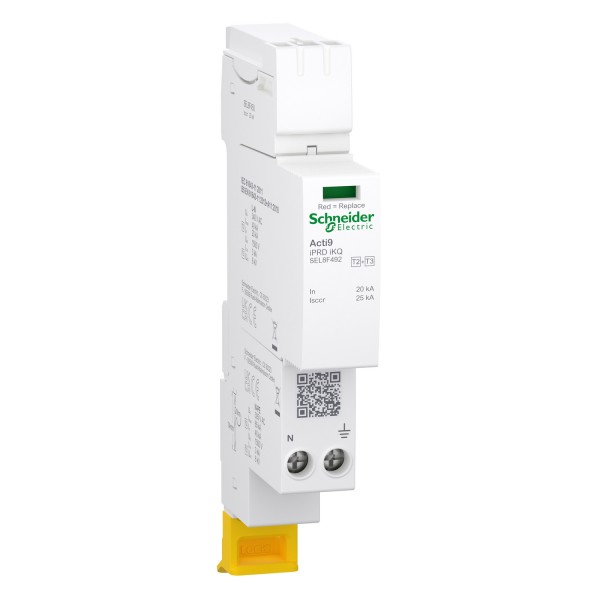

Schneider Electric SEL8F450 Acti9 Type 2+3 Surge Arrester with Pluggable Cartridge KQ II A iPRD iKQ 1P+N with Fuse 20kA

Schneider Electric Acti9 iKQ 1P+N Type 2+3 Surge Arrester with Fuse – Reliable Plug-On Surge Protection for KQ II Load Centres

The Schneider Electric SEL8F450 Acti9 iKQ Surge Arrester provides dependable Type 2+3 surge protection for single-phase KQ II load centres. Designed for safe and efficient installation, this modular SPD offers strong performance against transient overvoltages and ensures quick, tool-free maintenance with its pluggable cartridge system.

• Type 2+3 Combined Protection: Guards electrical installations against direct and indirect lightning surges, fully compliant with BS EN 61643-11:2012+A11:2018.
• Integrated Backup Fuse: Self-protected design removes the need for an external disconnector, simplifying system setup.
• Front-Face Status Indicator: Clear green/red flag shows operational condition, ensuring quick visual checks without additional tools.
• Pluggable Cartridge Design: Enables fast and safe replacement of cartridges, reducing maintenance time and enhancing continuity.
• Wide Compatibility: Suitable for TT, TN-S, and TN-C-S earthing systems, ideal for industrial and commercial environments.

Technical Specification

• Configuration: 1P+N Modular Device
• Nominal Discharge Current (In): 20kA (L–N) / 40kA (N–PE)
• Maximum Discharge Current (Imax): 40kA (L–N) / 65kA (N–PE)
• Voltage Protection Level (Up): 1.5kV (L–N & N–PE)
• Operating Voltage: 230/240V AC, 50/60Hz | Uc: 340V (L–N), 305V (N–PE)
• Operating Temperature: -40°C to +85°C | IP Rating: IP20 (wired)
• Dimensions: 18(W) × 136(H) × 83(D) mm | Weight: 148g

✅ Enhance surge protection performance with the Schneider Electric Acti9 iKQ 1P+N, purpose-built for reliable integration within KQ II load centres.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
