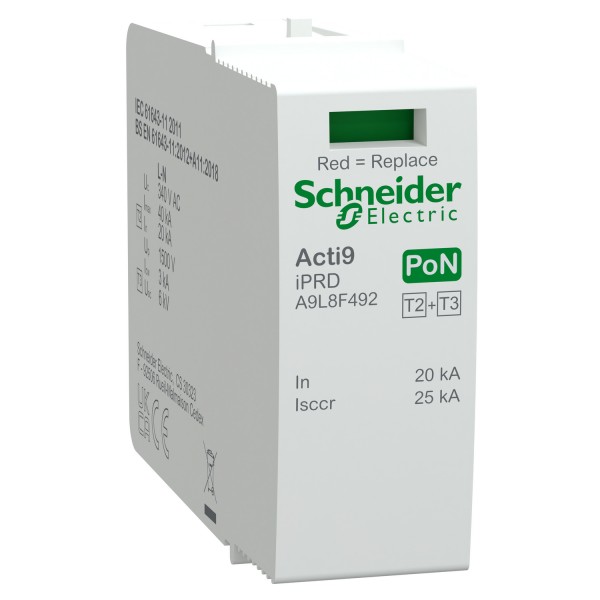

Schneider Electric A9L8F492 Acti9 Type 2+3 PoN SPD Cartridge L-N iPRD F40

Schneider Electric Acti9 iPRD F40 Type 2+3 L–N Replacement Cartridge – Reliable, Easy-Maintenance Surge Protection Solution

The Schneider Electric A9L8F492 Acti9 iPRD F40 Replacement Cartridge is designed for use with 1P+N or 3P+N Acti9 iPRD F40r surge protection devices. This pluggable module offers high-performance Type 2+3 surge protection, providing safe and efficient replacement while maintaining reliable overvoltage defence for commercial, industrial, and residential installations.

• Type 2+3 Cartridge Protection: Ensures robust overvoltage protection in differential mode (L–N), compliant with BS EN 61643-11:2012+A11:2018.
• Modular Pluggable Design: Allows quick, tool-free replacement with secure anti-vibration locking for stable performance.
• Integrated Signalling: Green/red status indicator for clear visual monitoring of operational state and cartridge condition.
• Surge-Adaptive Fuse: Built-in backup protection eliminates the need for external disconnectors, streamlining installation.
• Versatile Earthing Compatibility: Suitable for TT and TN-S systems, ideal for diverse electrical environments.

Technical Specification

• Configuration: L–N Cartridge for iPRD F40r SPD
• Nominal Discharge Current (In): 20kA
• Maximum Discharge Current (Imax): 40kA
• Voltage Protection Level (Up): 1.5kV
• Operating Voltage: 240V AC, 50/60Hz | Uc: 340V
• Operating Temperature: -40°C to +85°C
• Dimensions: 18(W) × 45(H) × 58(D) mm | Weight: 68g

✅ Maintain peak surge protection performance effortlessly with the Schneider Electric Acti9 iPRD F40 Replacement Cartridge.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
