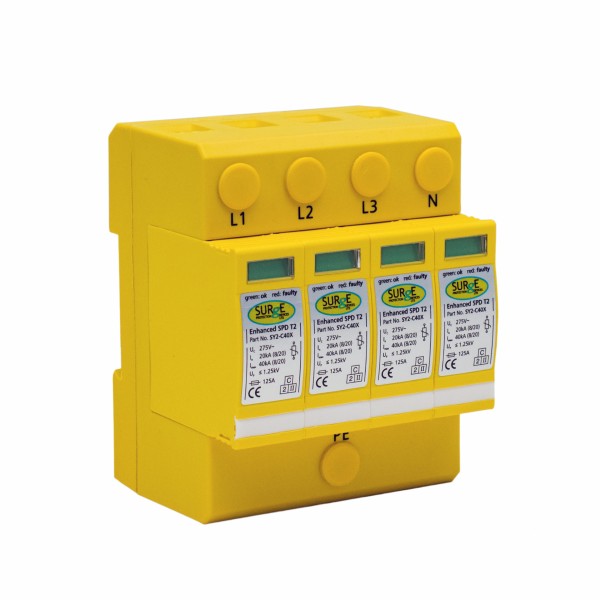

Surge Protection SY2-C40X Type 2+3, 3 Phase Surge Protector with Window Indication

Type 2+3 3-Phase Surge Protector – High-Speed DIN Mount with Status Indication

This Type 2+3 surge protection device offers reliable, standards-compliant protection for 3-phase systems in commercial and industrial settings. Designed to protect sensitive electronics from transient overvoltages, it features visual status indication, remote signalling options, and a robust build—available in either IP65 polycarbonate or metal enclosures.

• Reliable Type 2 Surge Protection: Guards end equipment and control systems against electrical surges, compliant with BS EN 61643-11, BS EN 62305, and BS 7671.
• Fast-Acting Response: Operates in less than 25ns with parallel connection design, ensuring no current limitation on your system.
• Flexible Monitoring Options: Visual status window and remote changeover contacts compatible with BMS, alarms, or other external indicators.
• Easy Maintenance & Mounting: DIN rail mountable with pluggable, service-friendly modules for reduced downtime.

Technical Specification

• Surge Protection Type: Type 2+3 Combined
• System Type: 3-Phase (TNC-S & TN-S)
• Enclosure Options: Polycarbonate IP65 or Metal Housing
• Response Time: <25ns
• Compliance: BS EN 61643-11, BS EN 62305, BS 7671

✅ Protect your 3-phase installations with this high-speed surge protector—designed for performance, priced for value.
