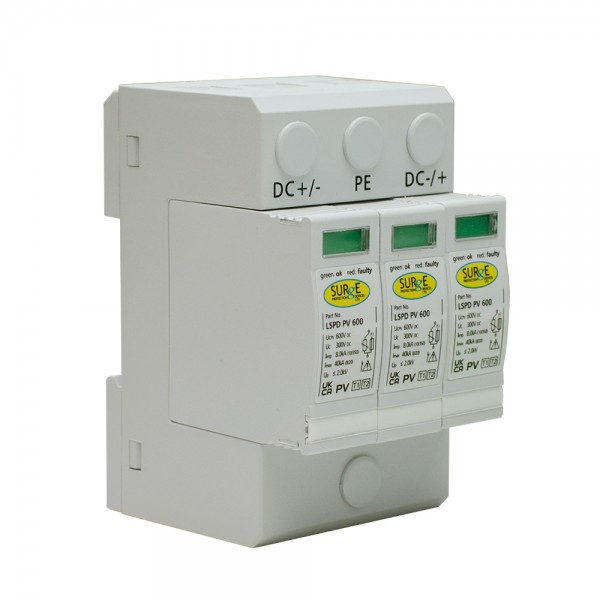

Surge Protection LSPDPV600 Type 1+2, 600V DC, For Solar / PV Installations

Surge Protection LSPDPV600 Type 1+2 Surge Protector 600V DC For Solar / PV Installations

LSPDPV600

Est 3-4 day delivery (Subject to availability)
£115.20 inc Vat
£96.00 ex Vat
Free delivery for orders over £100 ex VAT

LSPDPV600 Type 1+2 DC Surge Protector – 600V Lightning & Surge Protection for Solar PV Systems

The LSPDPV600 is a high-performance Type 1+2 DC surge protection device, purpose-built for photovoltaic installations. Providing comprehensive lightning and surge protection on the DC side before the inverter, it ensures your solar system meets regulatory compliance and operational reliability.

  • Type 1+2 Protection: Offers combined lightning and surge protection for robust system safety in solar PV installations.
  • Standard Compliance: Certified to IEC 61643-31 and BS EN 61643-31 for assured performance and safety.
  • Built-In Status Indication: Clear visual status window provides immediate health checks of the SPD modules.
  • Remote Monitoring Ready: Optional remote signal contact allows integration into system monitoring platforms.
  • Installer-Friendly Design: DIN rail mounting and pluggable, replaceable modules simplify installation and servicing.
Technical Specification
  • Surge Protection Type: Type 1+2
  • Voltage Rating: 600V DC
  • Application: Solar / Photovoltaic Systems
  • Mounting: DIN Rail
  • Compliance: IEC 61643-31, BS EN 61643-31

✅ Choose the LSPDPV600 for reliable lightning and surge protection on the DC side of your solar PV systems.

Technical Information
Product Surge Protection Device
Type Solar / PV
Enclosed N
