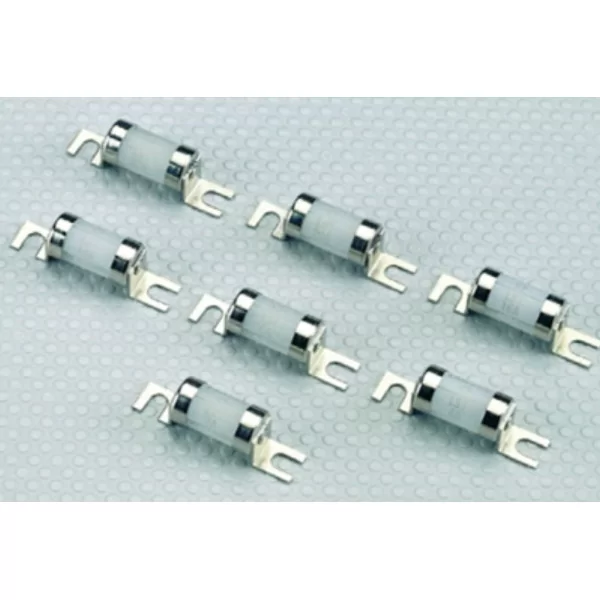

Lawson LST16 Type LST BS88, IEC60269-1 Street Lighting Cut-Out Fuse Link With Offset Bolted Tags 16 Amps 240V ac

Lawson LST16 Type LST Street Lighting Cut-Out Fuse Link – BS88 & IEC60269-1 Compliant, 16A, 240V AC, Offset Bolted Tags

The Lawson LST16 Street Lighting Cut-Out Fuse Link is designed for use in single-phase street lighting and similar applications. Built to BS88: Part 1 and IEC60269-1 standards, it features offset bolted tags and a breaking capacity suitable for reliable circuit protection.

• Purpose-Built for Street Lighting: Ideal for single-phase street lighting cut-outs and similar installations.
• Standards Compliance: Meets BS88: Part 1, IEC60269-1, UK Electricity Supply Industry Standards, and BS7654.
• Breaking Capacity: Rated at 20kA for 240V AC to ensure effective fault clearance.
• Approved by Authorities: Recognised by Lloyd’s Register of Shipping and Electricity Supply Authorities.
• Range of Ratings: Available from 2A up to 32A to suit various street lighting needs.

Technical Specification

• Current Rating: 16A
• Voltage Rating: 240V AC
• Breaking Capacity: 20kA at 240V AC
• BS Standard: BS88: Part 1
• IEC Standard: IEC60269-1

Dimensions

• A: 47.0mm
• B: 35.0mm
• C: 24.0mm
• D: 11.0mm
• E: 4.7mm
• F: 12.0mm
• G: 0.8mm
• H: 13.0mm

✅ Choose the Lawson LST16 Fuse Link for trusted, compliant protection in street lighting and related applications!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
