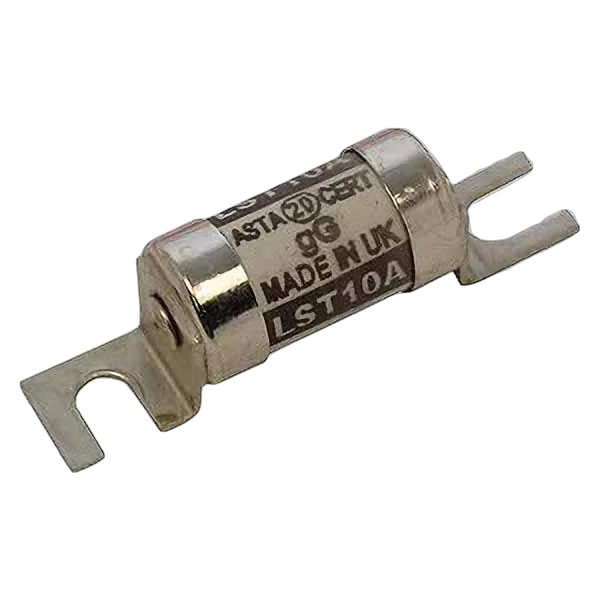

Lawson LST10 Type LST BS88, IEC60269-1 Street Lighting Cut-Out Fuse Link With Offset Bolted Tags 10 Amps 240V ac

Lawson LST10 Type LST Street Lighting Cut-Out Fuse Link – BS88 & IEC60269-1 Compliant, 10A, 240V AC, Offset Bolted Tags

The Lawson LST10 Street Lighting Cut-Out Fuse Link is designed for single-phase street lighting and similar applications. Manufactured to BS88: Part 1 and IEC60269-1 standards, it features offset bolted tags and a high breaking capacity to ensure reliable protection in lighting circuits.

• Designed for Street Lighting: Ideal for use in single-phase street lighting cut-outs and similar installations.
• Standards Compliance: Complies with BS88: Part 1, IEC60269-1, UK Electricity Supply Industry Standards, and BS7654.
• High Breaking Capacity: Rated at 20kA breaking capacity at 240V AC for effective fault clearance.
• Trusted & Approved: Approved by authorities including Lloyd’s Register of Shipping and Electricity Supply Authorities.
• Range of Ratings: Available in current ratings from 2A to 32A to suit various street lighting needs.

Technical Specification

• Current Rating: 10A
• Voltage Rating: 240V AC
• Breaking Capacity: 20kA at 240V AC
• BS Standard: BS88: Part 1
• IEC Standard: IEC60269-1

Dimensions

• A: 47.0mm
• B: 35.0mm
• C: 24.0mm
• D: 11.0mm
• E: 4.7mm
• F: 12.0mm
• G: 0.8mm
• H: 13.0mm

✅ Choose the Lawson LST10 Fuse Link for reliable, compliant protection in street lighting and related circuits!
