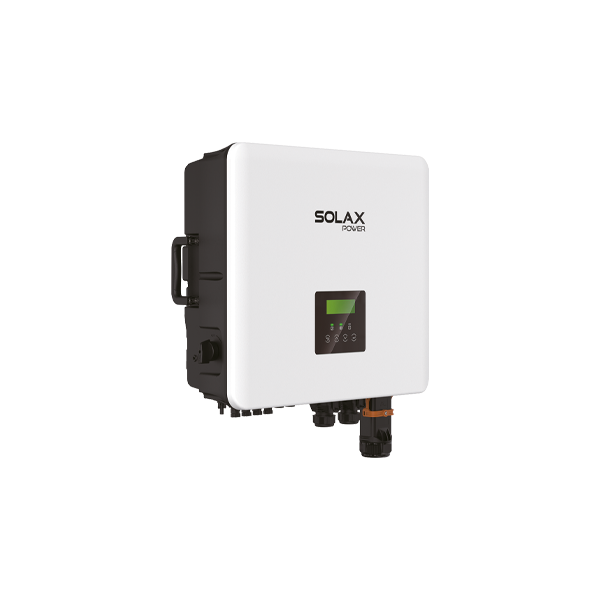

Solax X3-HYBRIDPRO-G4-8.0 X3 G4-V2 Hybrid 3 Phase Inverter HV 8.0kW

SolaX X3 Hybrid G4-V2 8.0kW 3 Phase Inverter - High Voltage, Scalable Energy Solution with Advanced Smart Control

The SolaX X3-HYBRIDPRO-G4-8.0 is a high-performance 3 phase hybrid inverter designed for demanding commercial and residential installations. Offering flexible system expansion, advanced safety features, and intelligent energy management, this inverter provides electricians with a reliable and future-ready solution for modern solar and storage systems.

• High PV Input Performance: Supports up to 200% PV oversizing with 20A DC input per MPPT and three trackers, maximising system efficiency across a wide 110–950V range.
• Reliable Backup Power: Delivers up to 200% EPS output for 10 seconds with sub-10ms UPS-level switching for uninterrupted supply during outages.
• Advanced Safety Features: Includes Type II SPD protection on AC and DC sides, with optional rapid shutdown and AFCI functionality for enhanced system protection.
• Flexible System Expansion: Dual independent battery ports and support for microgrid and generator modes allow adaptable system design and future scalability.
• Smart Energy Management: V2X ready with intelligent scheduling, VPP compatibility, and wireless metering support for optimised energy usage and control.

Technical Specification

• Rated Output Power: 8.0kW
• Phase: 3 Phase
• MPPT Trackers: 3
• MPPT Voltage Range: 110V – 950V
• Protection Rating: IP (Not specified), Type II SPD (AC & DC)

✅ Install the SolaX X3 Hybrid G4 8.0kW inverter for a powerful, scalable and intelligent energy solution built for modern electrical systems.
