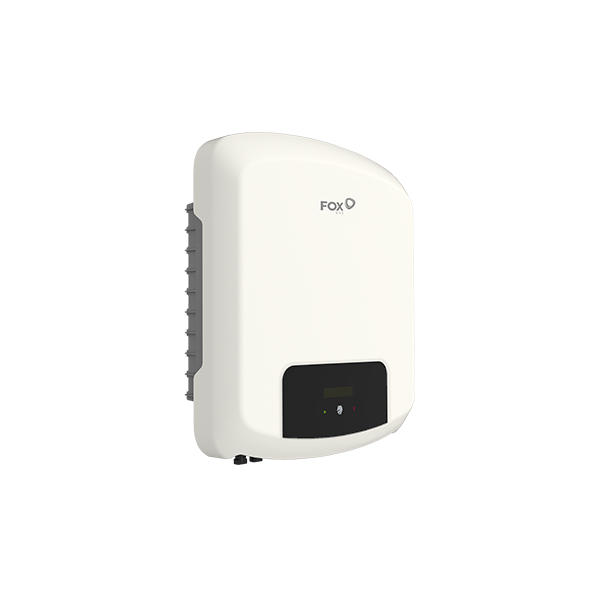

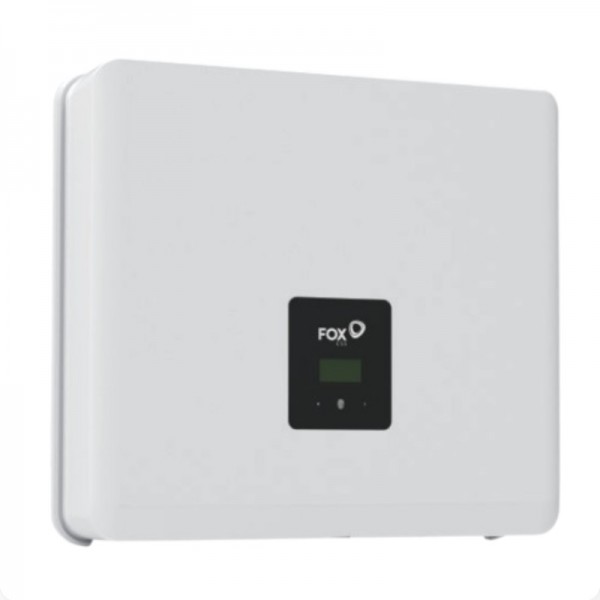

Fox ESS F Series (G3) F3000 3kW 1ph 2MPPT String Inverter
F3000
Est 3-4 day delivery (Subject to availability)
£336.00
inc Vat
£280.00
ex Vat
Free delivery for orders over £100 ex VAT
Fox ESS F Series F3000 (G3) 3kW String Inverter - Single Phase, Dual MPPT, High-Performance Design
The Fox ESS F3000 (G3) inverter is a high-performance single-phase solution featuring dual MPPT tracking for enhanced system flexibility and efficiency. Designed for residential installations, it delivers reliable energy generation with advanced cooling and smart monitoring capabilities.
- Dual MPPT Performance: Two MPPT trackers optimise energy harvest across multiple roof orientations or string configurations.
- Battery Ready: Fully compatible with Fox ESS battery storage systems for future upgrades.
- Remote Monitoring: Monitor system performance via smartphone or web portal for full visibility and control.
- Advanced Cooling Design: Natural convection cooling ensures silent operation with no internal fans.
- Durable IP65 Construction: Weather-resistant design suitable for a range of installation environments.
Technical Specification
- Model: F3000 (G3)
- Output Power: 3kW
- Phase: Single phase
- MPPT: 2 trackers
- IP Rating: IP65
✅ Choose the Fox ESS F3000 inverter for flexible, efficient, and future-ready solar installations.
Description
Technical Specification
Input Specifications
- Input Specifications Max Input Power- 4500W
- Max Input Voltage- 600V
- Start Up Input Voltage- 120V
- Rated Input Voltage- 360V
- MPPT Operating Voltage Range- 80-550
- Max Input Current- 12.5A
- Max Short Circuit Current- 15A
Output Specifications
- Rated Output- 3000W
- Max Output Apparent Power- 3300VA
- Rated Grid Voltage- 220/230/240V
- Rated Grid Frequency- 50/60HZ
General Data
- Dimensions- 402 x 476.5 x 148 mm
- Weight- 15.5 KG
- IP65
Technical Information
| Range | Fox F Series |
| Product | String Inverter |
| Type | String |
| Nominal Power Output | 3.0 kW |
