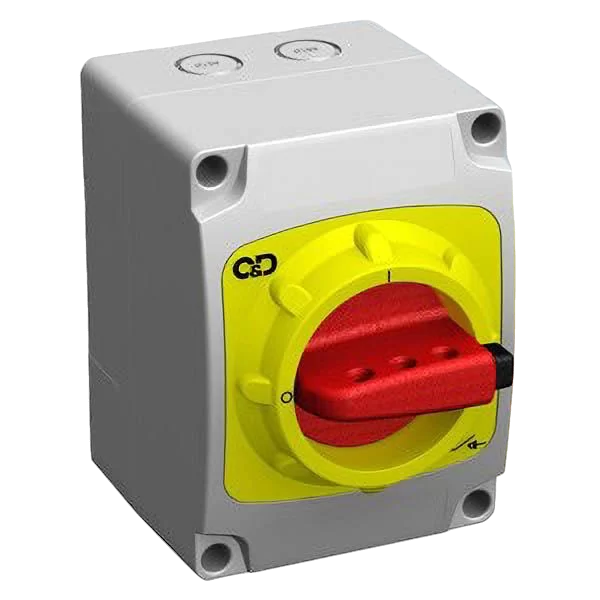

Craig & Derricott SDP406 I-Switch Moulded Six Pole Enclosed Rotary Isolator Switch 40A 415V

I-Switch Enclosed Rotary Isolator – 40A 415V, 6-Pole, IP66 Rated

This 40A six pole rotary isolator from the I-Switch range offers robust switching and full disconnection capability for multi-circuit or multi-phase installations. Housed in a durable PC/ABS moulded enclosure and sealed to IP66, it’s ideal for demanding industrial environments. The isolator features enhanced safety with a padlockable OFF position that prevents cover removal and ensures compliance with lockout/tagout procedures. It also accommodates auxiliary contact blocks and neutral assemblies for system flexibility.

• 6-Pole Switching: Designed for applications requiring full isolation of three-phase and additional circuits—ideal for complex or dual supply systems.
• 40A Rated Performance: Handles medium-duty industrial loads such as motors, machinery, and HVAC control systems.
• IP66 Rated Enclosure: Provides superior protection against dust and water, suitable for harsh or outdoor environments.
• Secure Safety Features: Padlockable in the OFF position to prevent access during isolation; captive stainless steel screws prevent component loss.
• Expandable System: Accepts up to 2 auxiliary contact blocks and optional neutral assemblies for advanced configurations.
• Flexible Cable Entry: 2 x M20/25 knockouts on both top and bottom faces simplify installation and cable management.

Technical Specification

• Current Rating: 40A
• Voltage Rating: 415V AC
• Poles: 6-pole (base mounted)
• Material: PC/ABS moulded enclosure
• Ingress Protection: IP66
• Cable Entries: 2 x M20/25 knockouts (top and bottom)
• Fixings: Located outside the sealed cavity
• Earthing: Earth terminals included in base
• Accessories: Supports 2 auxiliary blocks and optional neutral terminals

✅ Choose this 40A 6-pole I-Switch rotary isolator for flexible, weatherproof isolation in advanced or multi-circuit industrial systems!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
