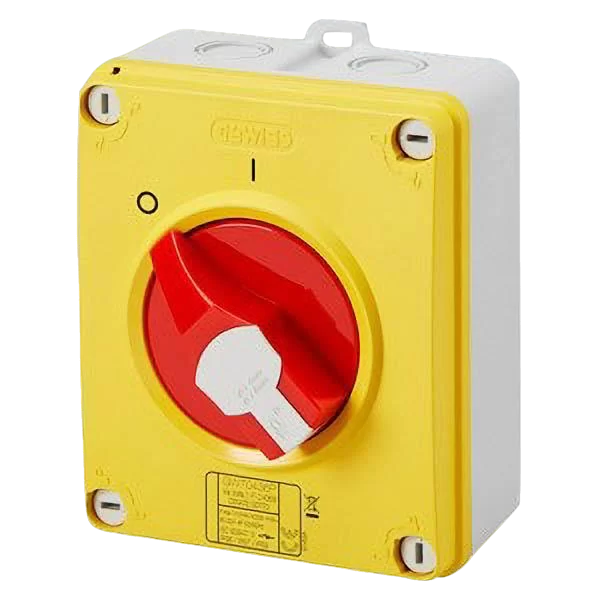

Gewiss GW70437P RT Series Yellow Plastic Surface Mounting Emergency Triple Pole Rotary Isolator Switch With Red Handle IP66/IP67/IP69 63A Length: 125mm - Height: 150mm - Depth: 112mm

Gewiss GW70437P RT Series Emergency Rotary Isolator Switch – IP66/IP67/IP69 Yellow Enclosure with Red Handle, 63A, Triple Pole

The Gewiss GW70437P from the 70 RT HP Series is a heavy-duty, surface-mounted emergency rotary isolator switch engineered for secure disconnection of three-phase circuits. With a 63A current rating and high ingress protection, it’s ideal for industrial applications demanding robust safety and weather resistance.

• High-Capacity Triple Pole Switching: 63A isolation for three-phase loads—ideal for heavy machinery and power distribution setups.
• Red Lockable Rotary Handle: Emergency handle with 3-position operation (ON/OFF/LOCKED OFF) provides safe and compliant isolation procedures.
• IP66/IP67/IP69 Rated Enclosure: Offers superior protection against dust, water jets, and high-pressure washdowns—suitable for demanding indoor or outdoor environments.
• Flexible Installation: 2 x M20/25 cable entries at both top and bottom to accommodate a variety of wiring configurations.
• Auxiliary Contact Compatibility: Accepts up to 2 auxiliary modules for remote signalling or control, with a max cable capacity of 10mm².

Technical Specification

• Product Code: GW70437P
• Series: RT Series
• Current Rating: 63A
• No. of Poles: 3 (Triple Pole)
• Handle: Red, lockable, 3-position
• Ingress Protection: IP66 / IP67 / IP69
• Cable Entry: 2 x M20/25 (top) + 2 x M20/25 (bottom)
• Max Cable Size: 10mm²
• Temperature Range: -25°C to +60°C
• Dimensions (L x H x D): 125mm x 150mm x 112mm

✅ Choose the Gewiss GW70437P for reliable, high-capacity emergency isolation in harsh industrial environments requiring triple-pole protection.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
