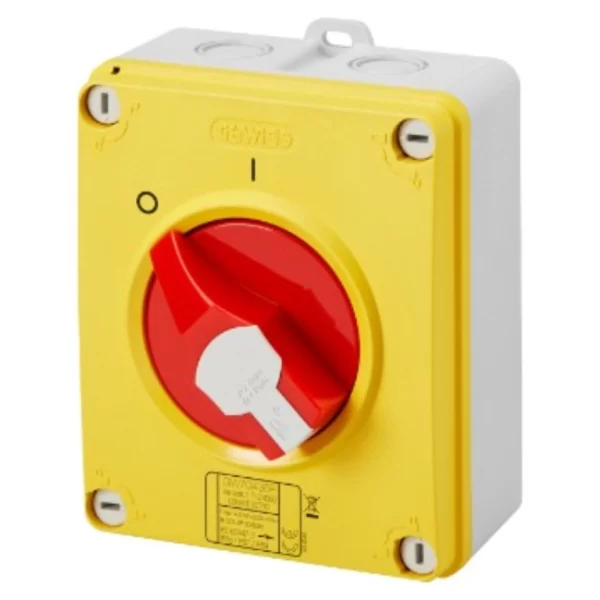

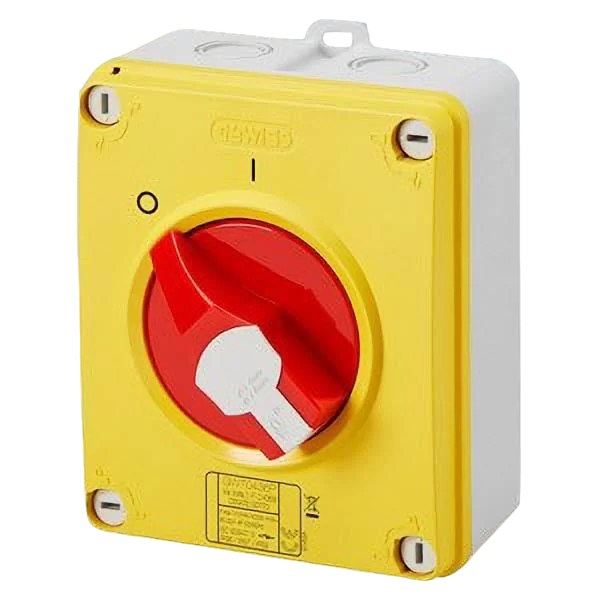

Gewiss GW70433P RT Series Yellow Plastic Surface Mounting Emergency Four Pole Rotary Isolator Switch With Red Handle IP66/IP67/IP69 16A Length: 125mm - Height: 150mm - Depth: 75.5mm
GW70433P
Gewiss GW70433P RT Series Emergency Rotary Isolator Switch – IP66/IP67/IP69 Yellow Enclosure with Red Handle, 16A, Four Pole
The Gewiss GW70433P from the 70 RT HP Series is a surface-mounted emergency rotary isolator switch engineered for reliable four-pole disconnection in demanding environments. Featuring a high-visibility yellow enclosure, lockable red handle, and IP66/IP67/IP69 ingress protection, this 16A isolator is ideal for critical applications where comprehensive isolation—including neutral—is required.
- Four-Pole Isolation: Safely isolates all phases and neutral in single- or three-phase systems with a 16A current rating.
- Red Lockable Emergency Handle: Three-position rotary switch (ON/OFF/LOCKED OFF) supports secure disconnection and lockout/tagout procedures.
- IP66/IP67/IP69 Protection: Resistant to dust, high-pressure water jets, and temporary immersion—ideal for both indoor and harsh outdoor use.
- Flexible Cable Entry Options: Supplied with 2 x M20/25 entries at the top and bottom, allowing for adaptable installation layouts.
- Auxiliary Compatibility: Accepts up to 2 auxiliary contact modules for signalling, control, or status indication; supports cables up to 10mm².
Technical Specification
- Product Code: GW70433P
- Series: RT Series
- Current Rating: 16A
- No. of Poles: 4 (Four Pole)
- Handle: Red, lockable, 3-position
- Ingress Protection: IP66 / IP67 / IP69
- Cable Entry: 2 x M20/25 (top) + 2 x M20/25 (bottom)
- Max Cable Size: 10mm²
- Temperature Range: -25°C to +60°C
- Auxiliary Contact Options: 2
- Dimensions (L x H x D): 125mm x 150mm x 75.5mm
✅ Choose the Gewiss GW70433P for full-phase and neutral emergency isolation in harsh, safety-critical industrial environments.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Gewiss RT Series |
| Product | Rotary Isolator Switches |
| Type | Rotary |
| Ingress Protection | IP66/IP67/IP69 |
| Colour | Yellow |
| Length | 125 mm |
| Voltage | 415 V |
| Pole Configuration | Four Pole (4P) |
| Material | Plastic |
| Width | 150 mm |
| Depth | 75.5 mm |
| Current Rating | 16A |
| Ce Approved | Y |
| Number Of Poles | Four Pole (4P) |
| Mounting Type | Surface |
| Voltage Rating | 415 V |
| Rated Current | 16 A |
| Enclosed | Y |
| Height | 150 mm |
| Switched | Y |
| Lockable? | Y |
| Flexible | N |
| C/w Fuses | N |
