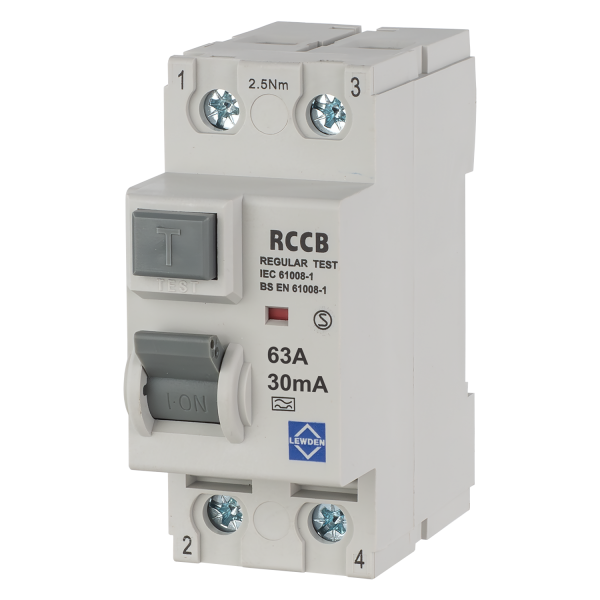

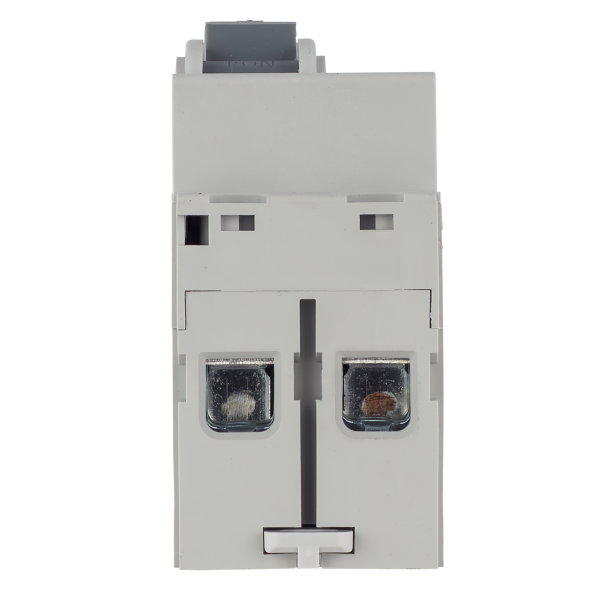

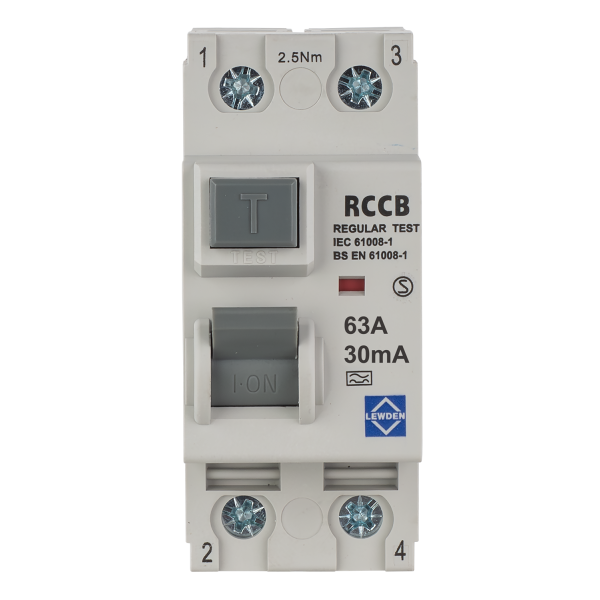

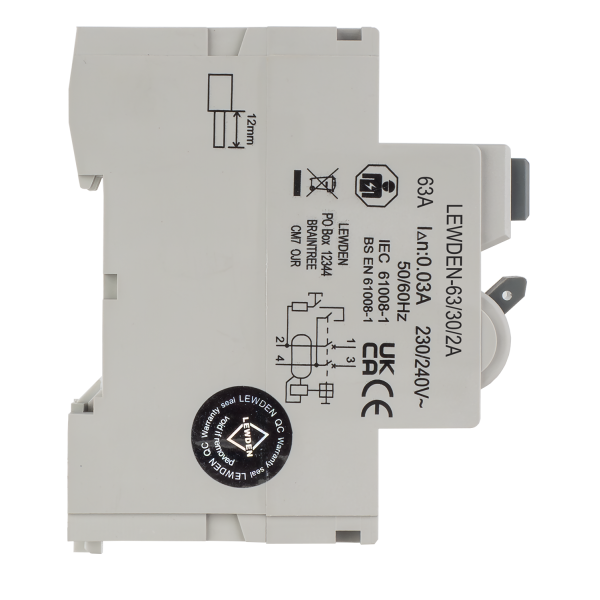

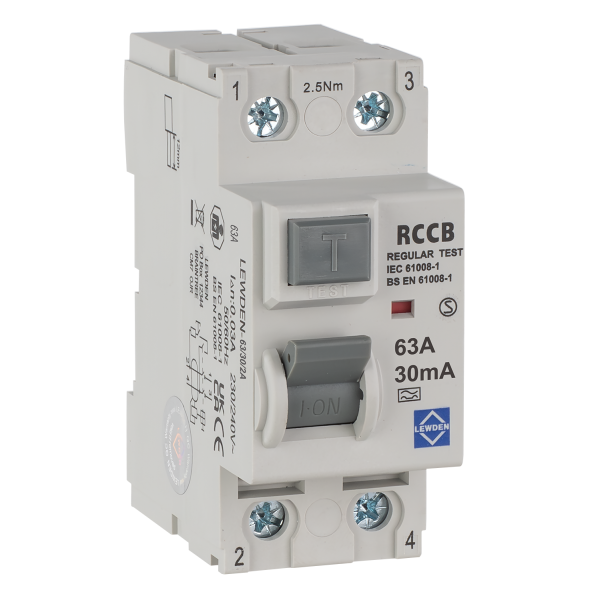

Lewden 63/30/2A 2 Module Double Pole Type A RCD 63A 30mA

63/30/2A

28 in stock for 2-3 day delivery see more info
£20.99 inc Vat
£17.49 ex Vat
Free delivery for orders over £100 ex VAT

2 Module Double Pole Type A RCD – 30mA for Reliable Residual Current Protection

This double-pole Type A RCD provides essential protection against residual currents, ensuring enhanced electrical safety in single-phase installations. Designed for use in consumer units and distribution boards, it detects AC and pulsating DC leakage currents to prevent electric shocks and fire hazards.

  • Compact 2-Module Design: Space-efficient for easy installation in consumer units and distribution boards.
  • Double Pole Protection: Disconnects both live and neutral conductors for complete circuit isolation.
  • Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced safety.
  • 30mA Sensitivity: Provides essential shock protection and leakage detection.
  • Quick & Secure Installation: DIN rail mounting for hassle-free setup.

Technical Specification

  • Type: Residual Current Device (RCD)
  • Poles: 2 (Double Pole)
  • Residual Current Type: Type A
  • Rated Current: 63A
  • Rated Residual Operating Current: 30mA
  • Mounting: DIN Rail
  • Application: Single-phase electrical installations
  • Compliance: IEC/EN 61008-1

✅ Ensure superior electrical safety with this high-performance double-pole Type A RCD!

Technical Information
Ean Code 5026992048795
Trip Type Type A
Short Circuit Rating 10 kA
Cable Capacity 35 mm2
Sensitivity 30 mA
Rcd Type/class A
Product RCD
Voltage 230 V
Unit Weight 0.212 kg
Pole Configuration Double Pole (2P)
Mounting DIN Rail
Width 36 mm
Depth 78 mm
Current Rating 63A
Standards BS EN 61008-1
Ce Approved N
Rcd Sensitivity 30 mA
Number Of Poles Double Pole (2P)
Height 85 mm
Number Of Modules 2
