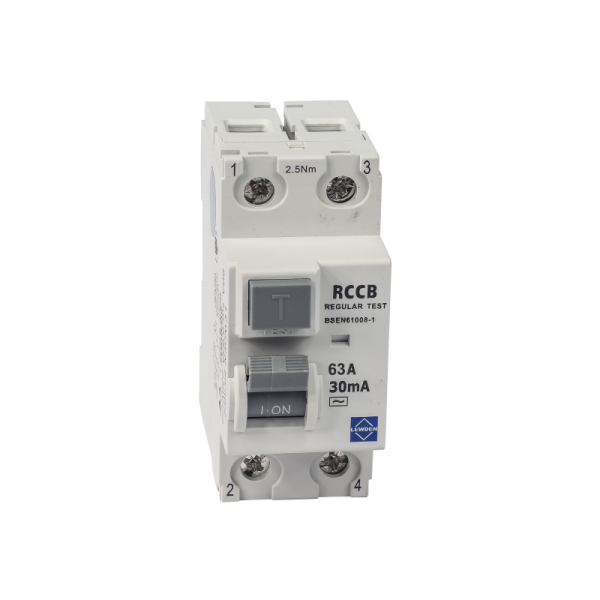

Lewden 63/30/2 Double Pole RCD Type AC 63A 30mA

63/30/2

2 in stock for 2-3 day delivery see more info
£19.24 inc Vat
£16.03 ex Vat
Free delivery for orders over £100 ex VAT

Double Pole Type AC RCD – 30mA for Reliable Residual Current Protection

This double-pole Type AC RCD provides essential protection against residual currents, ensuring enhanced electrical safety in single-phase installations. Compliant with BS EN 61008-1, it is designed for easy installation with a non-polarity-sensitive configuration, making it ideal for residential and commercial applications.

  • Type AC RCD Protection: Detects standard AC residual currents to prevent electric shock and fire hazards.
  • Double Pole Design: Disconnects both live and neutral conductors for complete circuit isolation.
  • Not Polarity Sensitive: Allows flexible installation without concern for line/load orientation.
  • Line at Top, Load at Bottom: Clearly marked connections for a straightforward setup.
  • 30mA Sensitivity: Ensures effective leakage current protection and electric shock prevention.
  • 35mm² Maximum Cable Capacity: Supports a range of conductor sizes for secure connections.

Technical Specification

  • Type: Residual Current Device (RCD)
  • Poles: 2 (Double Pole)
  • Residual Current Type: Type AC
  • Rated Current: 63A
  • Rated Residual Operating Current: 30mA
  • Maximum Cable Capacity: 35mm²
  • Polarity: Not polarity sensitive
  • Line/Load Orientation: Line at top, load at bottom
  • Compliance: BS EN 61008-1

✅ Ensure reliable residual current protection with this high-performance double-pole Type AC RCD!

Technical Information
Ean Code 5026992048450
Trip Type Type AC
Sensitivity 30 mA
Product RCD
Type RCCB
Voltage 230 V
Pole Configuration Double Pole (2P)
Current Rating 63A
Qualifier
Rcd Sensitivity 30 mA
Number Of Poles Double Pole (2P)
