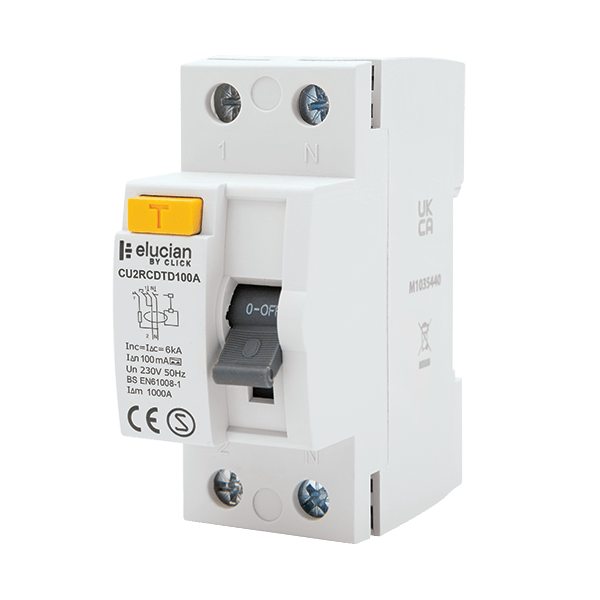

Scolmore CU2RCDTD100A Elucian 2 Pole 100A 100mA Time Delay RCCB (Type S)
CU2RCDTD100A
Scolmore Elucian 2 Pole 100A 100mA Time Delay RCCB (Type S) – Selective Residual Current Protection
The Scolmore Elucian time-delay RCCB provides selective residual current protection, making it ideal for use as an upstream device in coordinated electrical installations. Rated at 100A with 100mA sensitivity and Type S (time delay) operation, it helps reduce nuisance tripping while maintaining a high level of safety in residential and light commercial applications.
- Time Delay (Type S): Provides selective discrimination with downstream RCDs and RCBOs.
- 100mA Residual Current Rating: Offers fire protection while minimising unwanted tripping.
- Type S Operation: Designed for use as an upstream RCD in split-load and multi-circuit systems.
- Double Pole Design: Switches both live and neutral conductors for safe isolation.
- 100A Rated: Suitable for main incomer protection in consumer units.
Technical Specification
- Device Type: RCCB
- Poles: 2 Pole
- Rated Current: 100A
- Residual Current: 100mA
- Type: Type S (Time Delay)
✅Choose the Scolmore Elucian 100A Type S RCCB for selective, reliable, and regulation-compliant residual current protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Scolmore Elucian |
| Trip Type | Type S |
| Product | RCD |
| Current Rating | 100A |
| Number Of Poles | Double Pole (2P) |
