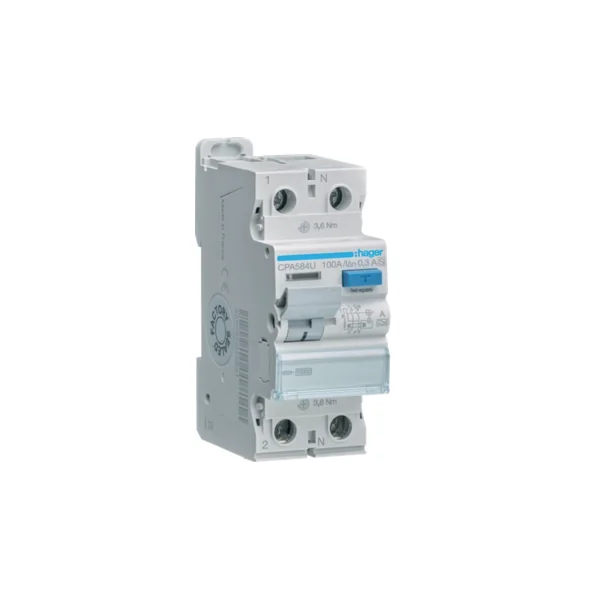

Hager CPA584U RCCB 1P+N 100A 300mA Type A S

CPA584U

Est 3-4 day delivery (Subject to availability)
£180.39 inc Vat
£150.33 ex Vat
Free delivery for orders over £100 ex VAT

Hager CPA584U RCCB Type A S – Time-Delayed Residual Current Protection for Single-Phase Installations

The Hager CPA584U is a 1P+N RCCB designed to provide reliable earth leakage protection in high-capacity single-phase systems. Featuring Type A sensitivity and an S-type time delay, it is ideal for use where selectivity is required in cascaded RCD arrangements, helping to reduce nuisance tripping.

  • Time-Delayed Residual Current Protection: S-type delay ensures selectivity with downstream RCDs.
  • Type A Sensitivity: Detects AC and pulsating DC leakage currents, suitable for modern appliances and electronics.
  • High Current Rating: 100A capacity for heavy-load single-phase installations.
  • 1P+N Design: Protects both live and neutral conductors.
  • Durable Construction: Built for long-term professional use in demanding environments.
Technical Specification
  • Poles: 1P+N
  • Rated Current: 100A
  • Residual Current Sensitivity: 300mA
  • Type: A
  • Time Delay: S-type (selective)

✅ Choose the Hager CPA584U for high-capacity, selective residual current protection in single-phase installations.

Technical Information
Product RCD
Current Rating 100A
