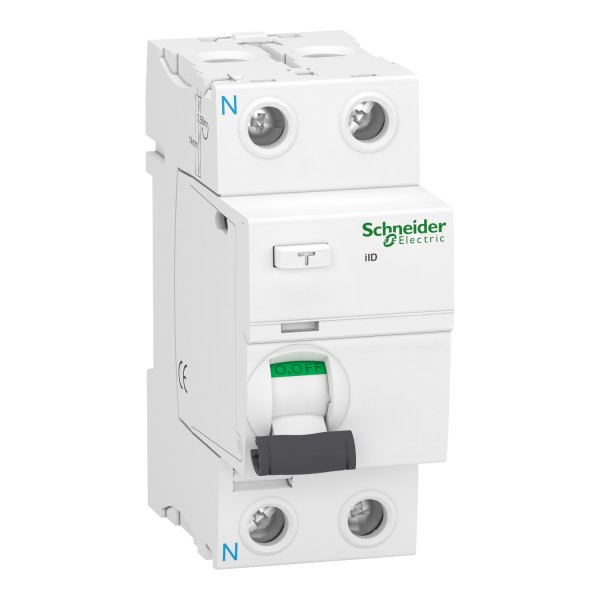

Schneider SEA9R15291 Acti9 2P 100A 300mA S RCD for Isoba

Acti9 iID - RCCB - 2P - 100A - 300mA S - Type AC

The Acti9 iID is a modular and reliable residual current circuit breaker (RCCB) designed for electrical protection against indirect contact and fire hazards. It features AC type protection, ensuring effective disconnection in case of earth fault. Its VisiTrip and VisiSafe indicators enhance safety by reducing intervention time and confirming full pole disconnection for maintenance.

• Reliable RCCB Protection – Safeguards against electrical shock and fire hazards.
• AC Type Protection – Detects AC residual currents for comprehensive circuit safety.
• VisiTrip Indicator – Reduces intervention time by identifying the faulty device.
• VisiSafe Window – Green strip on the toggle confirms full pole disconnection.
• High-Endurance Performance – Rated for up to 10,000 electrical and 20,000 mechanical cycles.
• Compact & Easy Installation – DIN rail mountable, occupying 4 x 9mm module width.

Technical Specifications

• Poles: 2P
• Rated Current (In): 100A
• Earth Leakage Sensitivity: 300mA
• Rated Breaking & Making Capacity (Im/IΔm): 1500A
• Conditional Short Circuit Rating (Inc/IΔc): 10kA
• Operational Voltage (Ue): 220V - 240V AC
• Insulation Voltage (Ui): 500V AC
• Impulse Withstand Voltage (Uimp): 6kV
• Frequency: 50/60Hz
• Protection Rating: IP20 (IP40 when enclosed as per IEC/EN 60529)
• Endurance:
  • Electrical: 10,000 cycles
  • Mechanical: 20,000 cycles
• Mounting: DIN rail installation
• Dimensions: 36mm (W) x 91mm (H) x 73.5mm (D)
• Weight: 0.21kg
• Operating Temperature: -5°C to 60°C
• Storage Temperature: -40°C to 85°C

✅ The Acti9 iID RCCB is a high-performance, durable protection device, ideal for ensuring electrical safety in industrial and residential applications.
