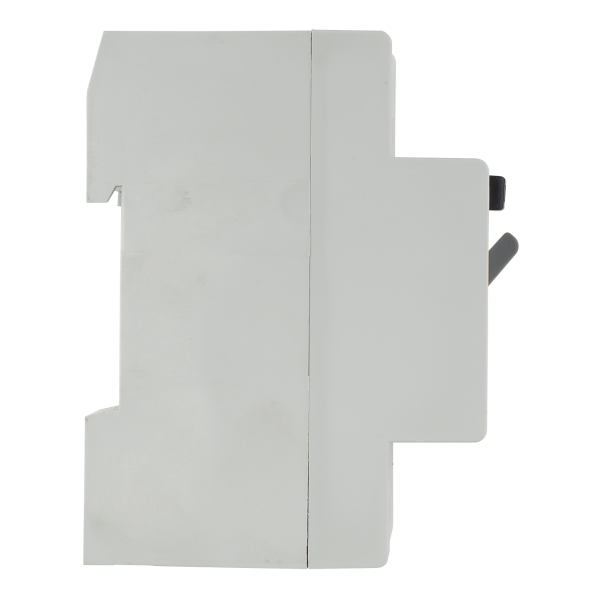

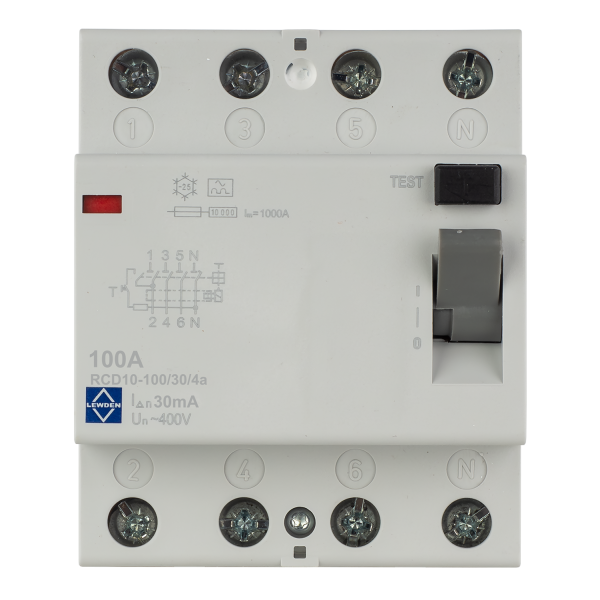

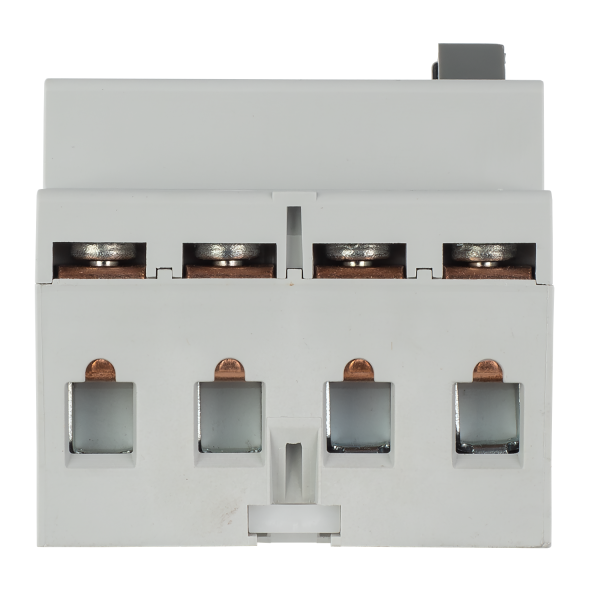

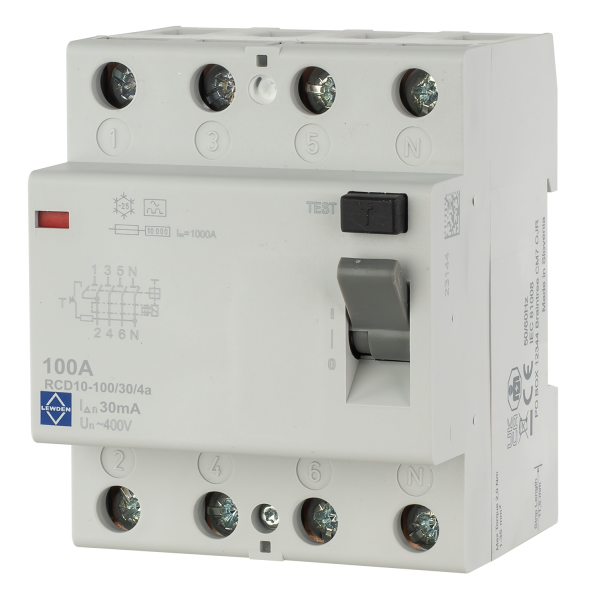

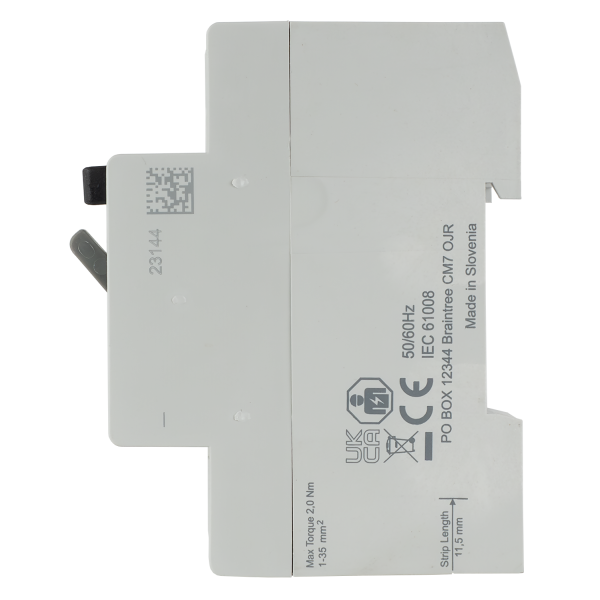

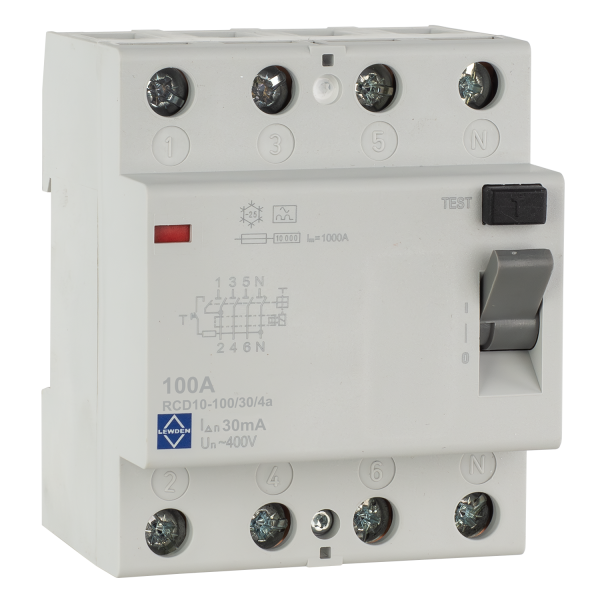

Lewden RCD10-100/30/4A 100 Amp 4 Pole Type A RCD 30mA

Lewden RCD10-100/30/4A 100 Amp 4 Pole Type A RCD 30mA

RCD10-100/30/4A

Est 3-4 day delivery (Subject to availability)
£115.01 inc Vat
£95.84 ex Vat
Free delivery for orders over £100 ex VAT

100A 4 Pole Type A RCD – 30mA for Reliable Residual Current Protection

This 100A 4-pole Type A RCD provides essential residual current protection for single-phase and three-phase electrical systems. Tested and approved for use with Lewden distribution boards, it enhances safety by detecting AC and pulsating DC residual currents, making it suitable for various earthing systems.

  • Compatible with Lewden Distribution Boards: Designed and tested for seamless integration.
  • Type A RCD Protection: Detects AC and pulsating DC residual currents for improved electrical safety.
  • 4 Pole Design: Provides full protection for three-phase installations, including neutral.
  • 100A Rated Current: Ideal for high-power electrical systems in residential, commercial, and industrial settings.
  • 30mA Sensitivity: Ensures effective protection against electric shock and leakage currents.
  • Supports Multiple Earthing Systems: Suitable for use in TN-S, TN-C-S, and TT network systems.

Technical Specification

  • Type: Residual Current Device (RCD)
  • Poles: 4
  • Residual Current Type: Type A
  • Rated Current: 100A
  • Rated Residual Operating Current: 30mA
  • Network Compatibility: TN-S, TN-C-S, TT
  • Application: Single-phase and three-phase electrical installations
  • Compliance: Tested for use with Lewden distribution boards

✅ Ensure superior electrical safety with this high-performance 100A 4-pole Type A RCD!

Technical Information
Trip Type Type A
Product RCD
Current Rating 100A
Number Of Poles Four Pole (4P)
Downloads

Data Sheet

DOWNLOAD
