63/30/4A 4 Pole Type A 63 Amp RCD 30mA

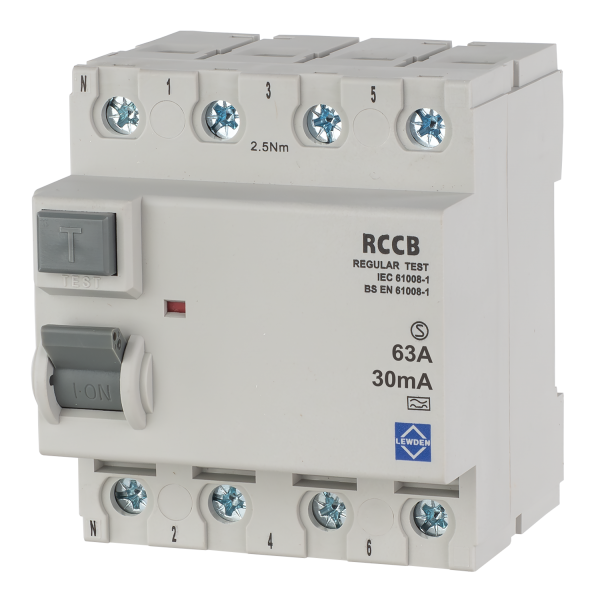

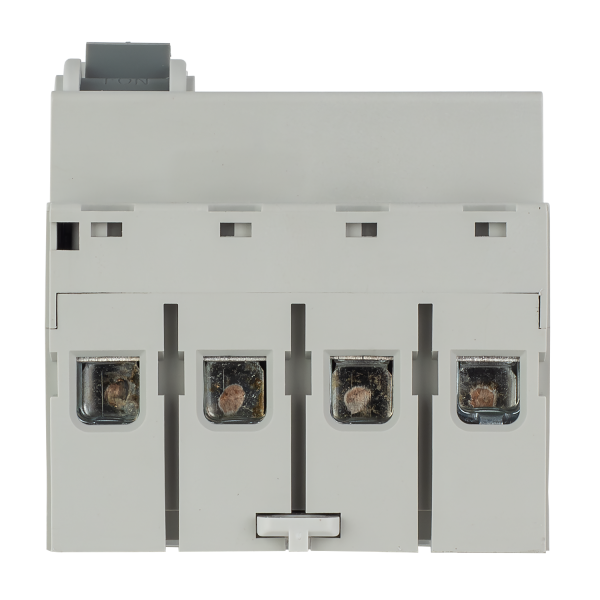

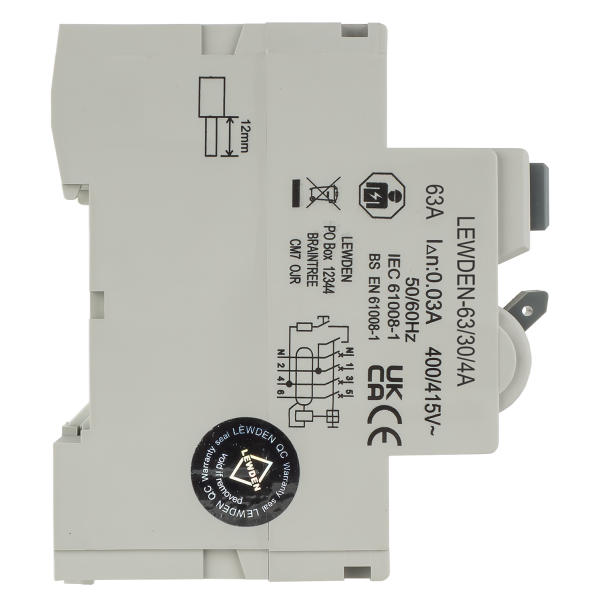

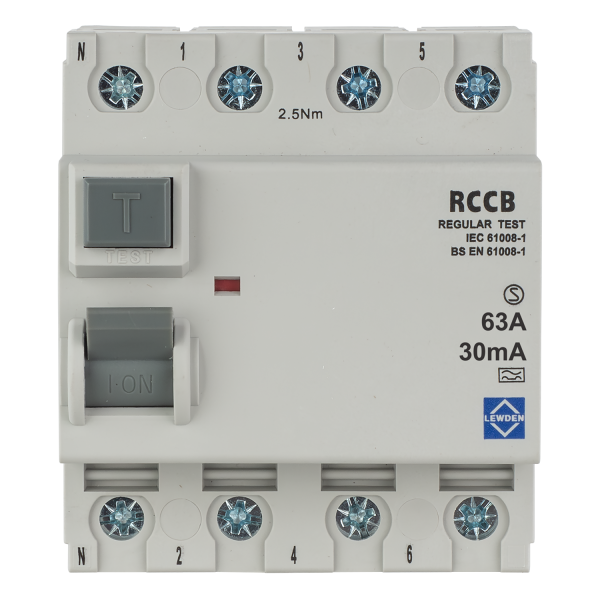

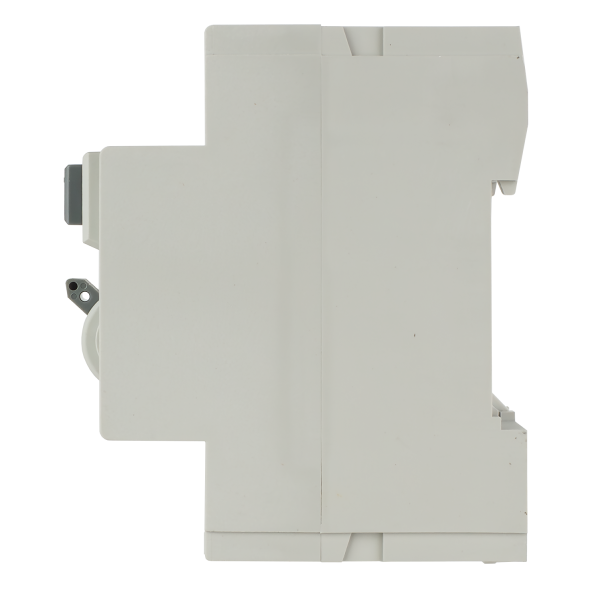

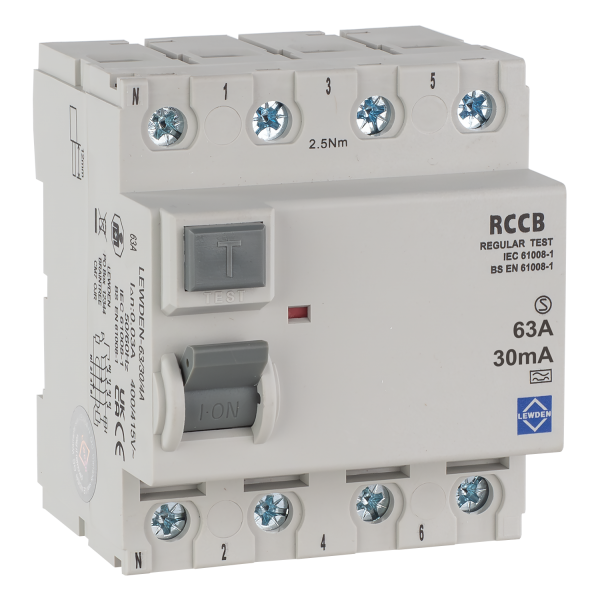

Lewden 63/30/4A 4 Pole Type A 63 Amp RCD 30mA

63/30/4A

Est 3-4 day delivery (Subject to availability)
£69.42 inc Vat
£57.85 ex Vat
Free delivery for orders over £100 ex VAT

4 Pole Type A RCD – 30mA for Reliable Residual Current Protection

This 4-pole Type A RCD is designed to provide effective residual current protection in single-phase and three-phase applications. Tested and approved for use with Lewden distribution boards, it ensures enhanced safety by detecting AC and pulsating DC residual currents, making it suitable for various electrical network systems.

  • Compatible with Lewden Distribution Boards: Designed and tested for seamless integration.
  • Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced electrical safety.
  • 4 Pole Design: Suitable for both single-phase and three-phase applications.
  • 30mA Sensitivity: Ensures effective protection against electric shocks and leakage currents.
  • Supports Multiple Earthing Systems: Suitable for use in TN-S, TN-C-S, and TT network systems.

Technical Specification

  • Type: Residual Current Device (RCD)
  • Poles: 4
  • Residual Current Type: Type A
  • Rated Current: 63A
  • Rated Residual Operating Current: 30mA
  • Network Compatibility: TN-S, TN-C-S, TT
  • Application: Single-phase and three-phase electrical installations
  • Compliance: Tested for use with Lewden distribution boards

✅ Ensure enhanced electrical safety with this high-performance 4-pole Type A RCD!

Technical Information
Trip Type Type A
Product RCD
Current Rating 63A
Number Of Poles Four Pole (4P)
Downloads

Data Sheet

DOWNLOAD
