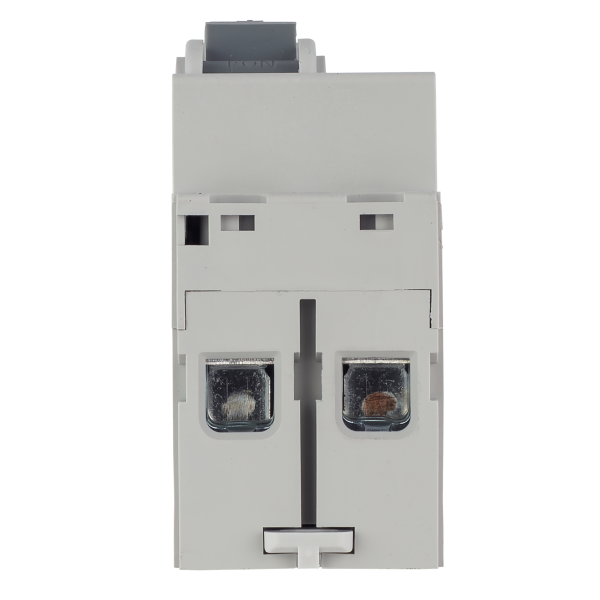

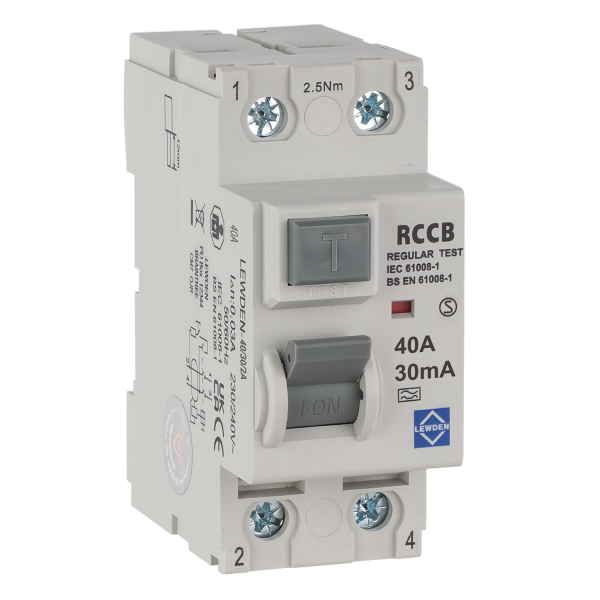

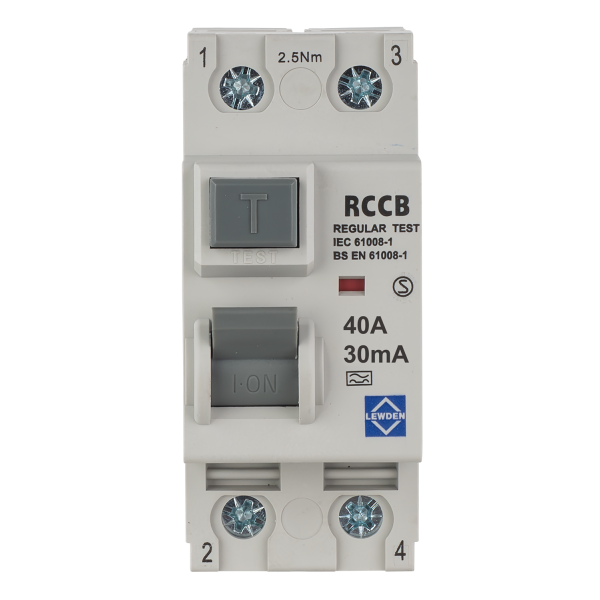

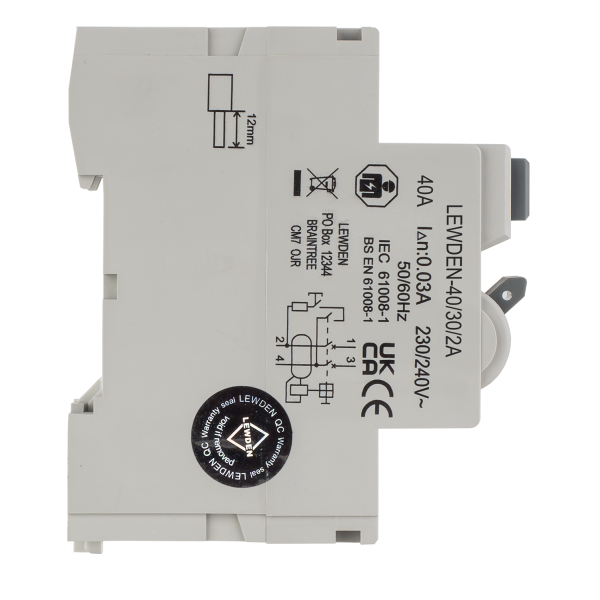

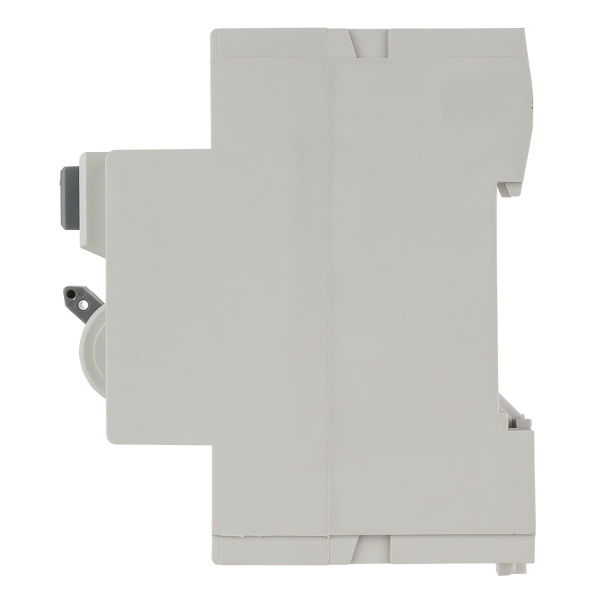

Lewden 40/30/2A 2 Pole Type A 40 Amp RCD 30mA
40/30/2A
2 Module Double Pole Type A RCD – 30mA for Reliable Residual Current Protection
This double-pole Type A RCD provides essential protection against residual currents, ensuring enhanced electrical safety in single-phase installations. Designed for use in consumer units and distribution boards, it detects AC and pulsating DC leakage currents to prevent electric shocks and fire hazards.
- Compact 2-Module Design: Space-efficient for easy installation in consumer units and distribution boards.
- Double Pole Protection: Disconnects both live and neutral conductors for complete circuit isolation.
- Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced safety.
- 30mA Sensitivity: Provides essential shock protection and leakage detection.
- Quick & Secure Installation: DIN rail mounting for hassle-free setup.
Technical Specification
- Type: Residual Current Device (RCD)
- Poles: 2 (Double Pole)
- Residual Current Type: Type A
- Rated Current: 40A
- Rated Residual Operating Current: 30mA
- Mounting: DIN Rail
- Application: Single-phase electrical installations
- Compliance: IEC/EN 61008-1
✅ Ensure superior electrical safety with this high-performance double-pole Type A RCD!
Trip Type | Type A |
Product | RCD |
Current Rating | 40A |
Number Of Poles | Double Pole (2P) |
