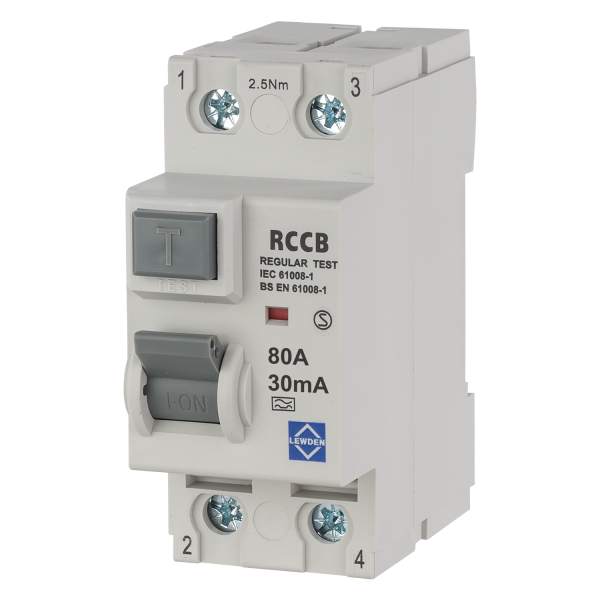

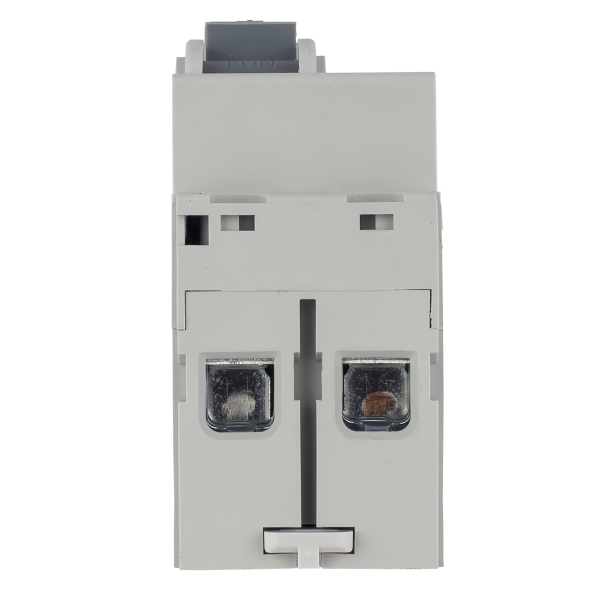

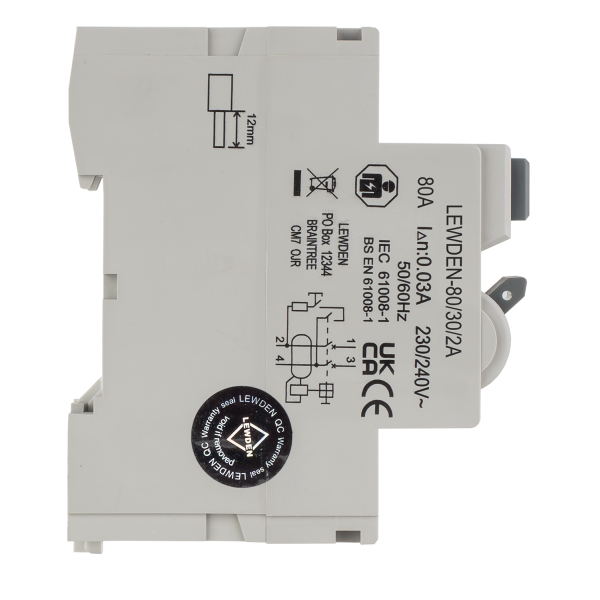

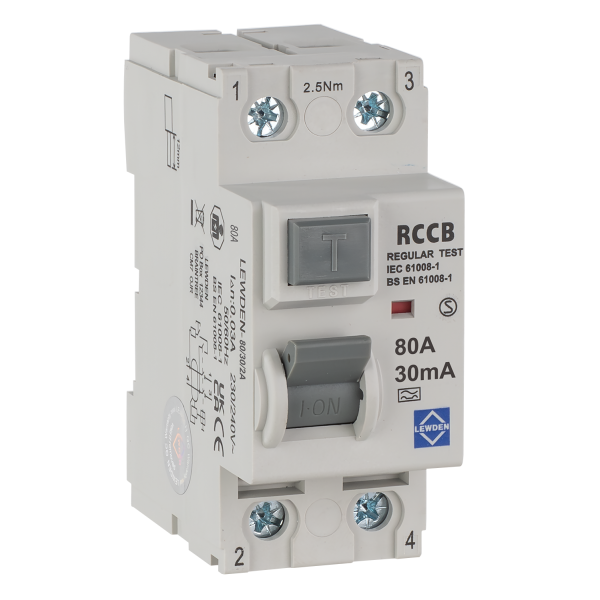

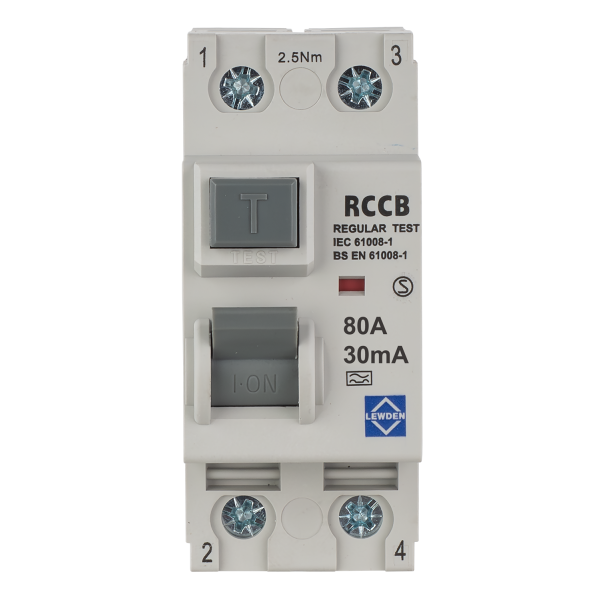

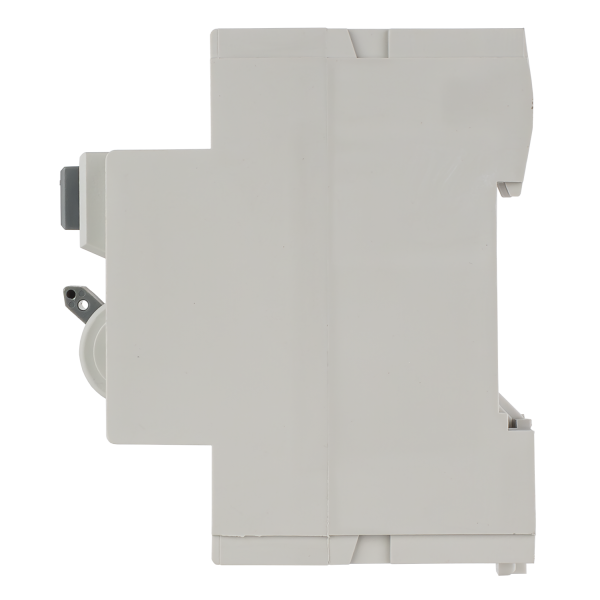

Lewden 80/30/2A 2 Module Double Pole Type A RCD 80A 30mA
80/30/2A
2 Module Double Pole Type A RCD – 30mA for Reliable Residual Current Protection
This double-pole Type A RCD provides essential protection against residual currents, ensuring enhanced electrical safety in single-phase installations. Designed for use in consumer units and distribution boards, it detects AC and pulsating DC leakage currents to prevent electric shocks and fire hazards.
- Compact 2-Module Design: Space-efficient for easy installation in consumer units and distribution boards.
- Double Pole Protection: Disconnects both live and neutral conductors for complete circuit isolation.
- Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced safety.
- 30mA Sensitivity: Provides essential shock protection and leakage detection.
- Quick & Secure Installation: DIN rail mounting for hassle-free setup.
Technical Specification
- Type: Residual Current Device (RCD)
- Poles: 2 (Double Pole)
- Residual Current Type: Type A
- Rated Current: 80A
- Rated Residual Operating Current: 30mA
- Mounting: DIN Rail
- Application: Single-phase electrical installations
- Compliance: IEC/EN 61008-1
✅ Ensure superior electrical safety with this high-performance double-pole Type A RCD!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5026992048801 |
| Trip Type | Type A |
| Short Circuit Rating | 10 kA |
| Cable Capacity | 35 mm2 |
| Sensitivity | 30 mA |
| Rcd Type/class | A |
| Product | RCD |
| Voltage | 230 V |
| Unit Weight | 0.192 kg |
| Pole Configuration | Double Pole (2P) |
| Mounting | DIN Rail |
| Width | 36 mm |
| Depth | 78 mm |
| Current Rating | 80A |
| Standards | BS EN 61008-1 |
| Ce Approved | N |
| Rcd Sensitivity | 30 mA |
| Number Of Poles | Double Pole (2P) |
| Height | 85 mm |
| Number Of Modules | 2 |
