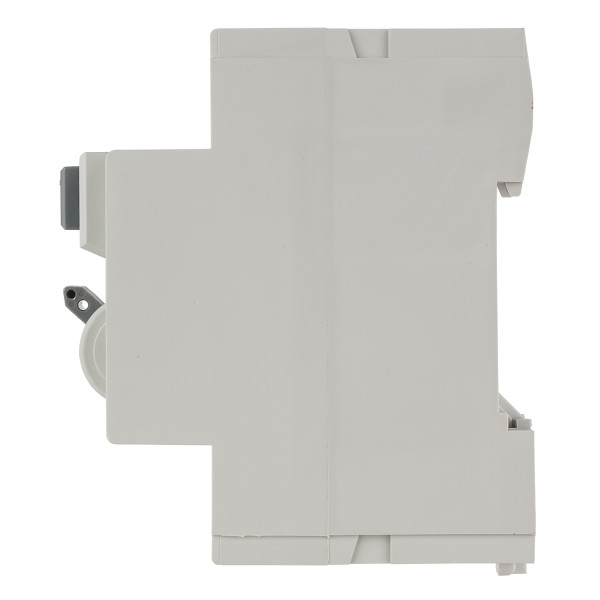

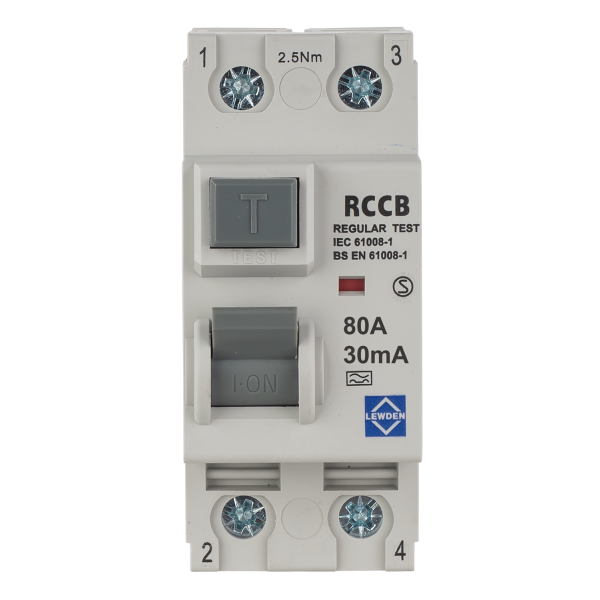

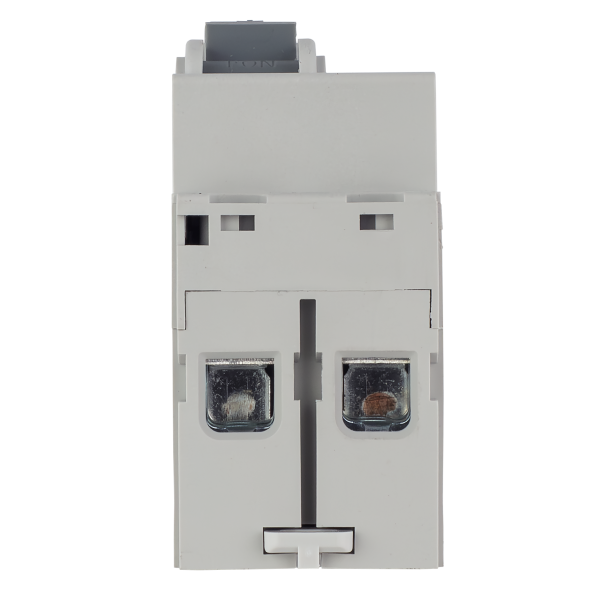

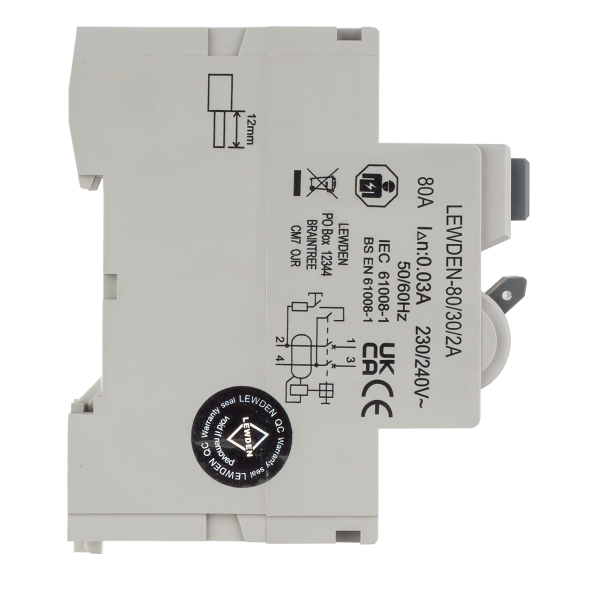

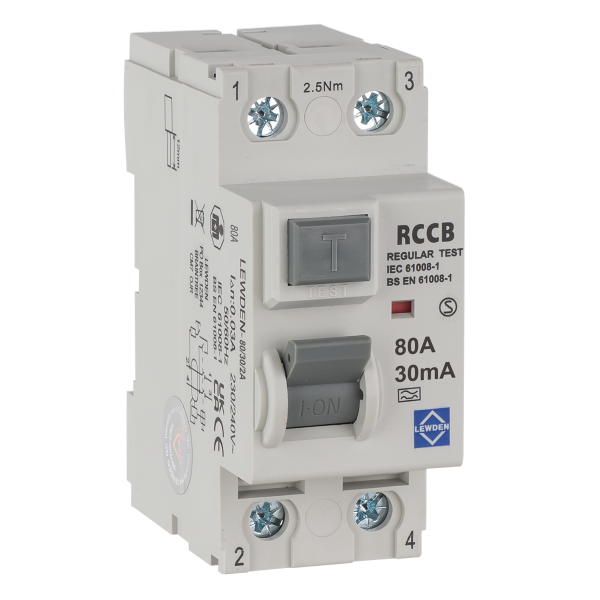

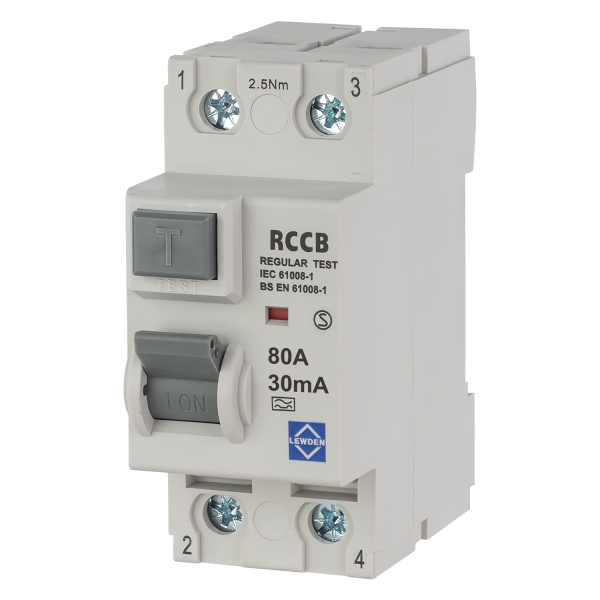

Lewden 80/30/2A 2 Module Double Pole Type A RCD 80A 30mA
80/30/2A
Tripping Threshold: 30mA The Lewden range of circuit protection devices are designed and tested for use with Lewden branded distribution boards. This device must be installed by a qualified electrician in accordance with the latest edition of the IET wiring regulations for electrical installations BS7671.
Technical Info:
Reference standard: IEC /BS EN61008-1
Rated residual current (I n): 30 or 100mA
Rated Voltage (Un): 230-240V / 400-415V A
No. of poles: 2 /
Rated Current (In): 25-100A
Rated Frequency (Fn): 50/60Hz
Rated conditional short circuit current (Inc): 6000A
Rated conditional residual breaking current (I c): 6000A
Rated impulse withstand (Uimp): 4kV
Rated making & breaking capacity: 630A
Types available: A or AC
Neutral pole: Switched
Terminals line/load: 1-35mm²
Terminal tightening torque: 2.5Nm
Operating temperature: -5 to +40°c
RCCB / RCBO OPTIONS
Lewden RCCBs and RCBOs are available in both type AC and type A versions, offering the installer the option to choose the correct protection device for the load application. The range also includes 100A rated RCCBs in type A, in 30mA and 100mA time delayed versions.
Protection against overcurrent
RCCBs do not provide protection against overload or short circuits. They must be used in conjunction with MCB devices to provide circuit protection against overloads and short circuit faults.
Power supply polarity
Lewden type A & AC RCCBs are not polarity sensitive. The devices can be mains fed from either the upper or lower terminal sets. On 2 pole devices, Line and Neutral connections can be transposed to either to the left or right (e.g. Line IN/OUT can be made on either pole 1-2 or 3-4) On 4 pole devices, Line and Neutral connections must be strictly terminated according to the terminal markings on the device. 4P devices are suitable for use in circuits with and without a neutral supply connection (3 and 4 wire systems), due to the integral test circuit being connected between two of the phases.
Earth system
RCCBs are suitable for use in TN-S,TN-C-S, & TT network systems. Where used within a split load consumer unit installed in domestic premises forming part of a TT network, the double pole main switch of the consumer unit should incorporate an S type time delayed RCCB, e.g. 100mA S type RCCB
| Ean Code | 5026992048801 |
| Trip Type | Type A |
| Short Circuit Rating | 10 kA |
| Cable Capacity | 35 mm2 |
| Sensitivity | 30 mA |
| Rcd Type/class | A |
| Product | RCD |
| Voltage | 230 V |
| Unit Weight | 0.192 kg |
| Pole Configuration | Double Pole (2P) |
| Mounting | DIN Rail |
| Width | 36 mm |
| Depth | 78 mm |
| Current Rating | 80A |
| Standards | BS EN 61008-1 |
| Ce Approved | N |
| Rcd Sensitivity | 30 mA |
| Number Of Poles | Double Pole (2P) |
| Height | 85 mm |
| Number Of Modules | 2 |
