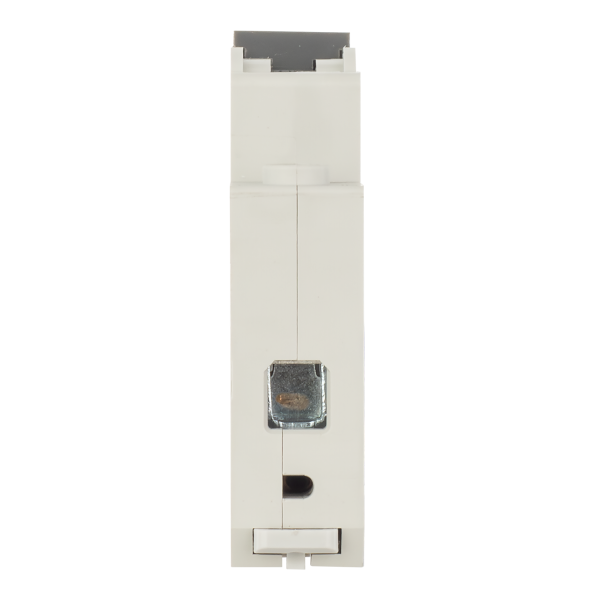

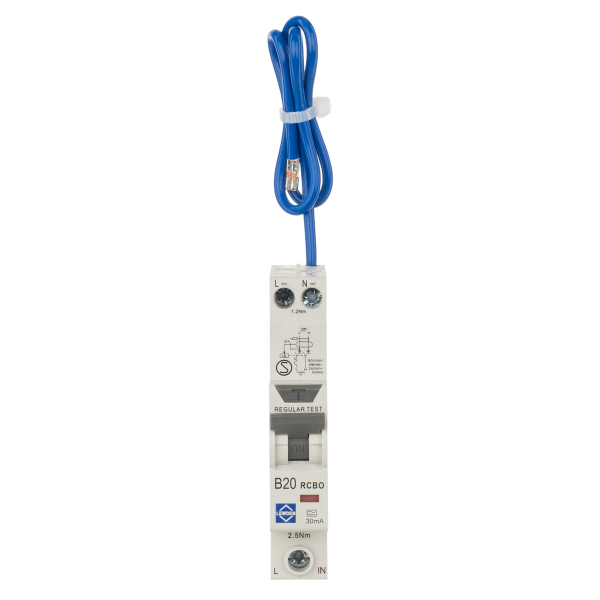

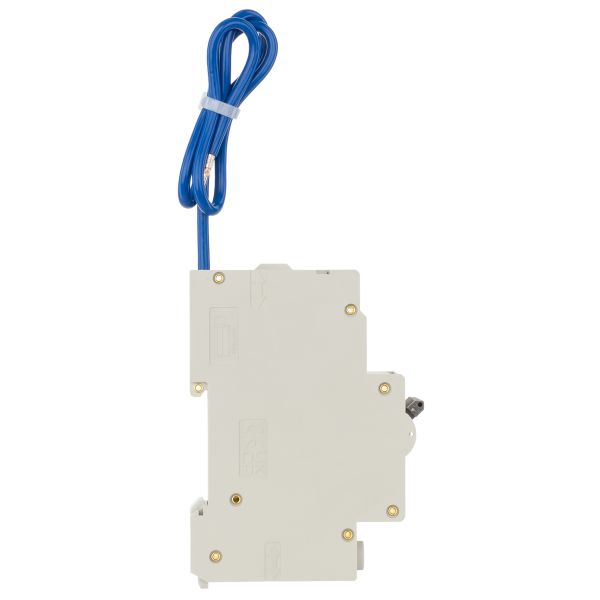

Lewden RCBO-B20/30/1PNA Compact Double Pole B Curve Type A RCBO With Switched Neutral 1P+N 20A 30mA
RCBO-B20/30/1PNA
Lewden Compact Double Pole B Type A Class RCBO With Switched Neutral 1P+N 20A 30mA. The Lewden range of circuit protection devices are designed and tested for use with Lewden branded distribution boards.
- Double pole switching for complete isolation of faulty circuits
- Neutral pole switching significantly reduces the installation and commissioning test time
- Compact 96mm height further increases the available wiring space within the consumer unit
- Suitable for TN & TT earthing systems
- Particularly suited to installations where double pole isolation of individual circuits may be required
Technical Specification
For cables ø: 1-16mm²
Breaking capacity: 6kAkA
Trip curve: B
Frequency: 50/60Hz
Poles: 2P
Rated operating voltage: 230/400V
Rated current: 20A
Execution: DIN RAIL MOUNTING
RCD Class: A
Residual Current: 30.00
| Ean Code | 5026992045329 |
| Trip Type | B Curve Type A |
| Sensitivity | 30 mA |
| Product | RCBO |
| Type | Singe Pole Compact |
| Voltage | 230 V |
| Pole Configuration | SP+N |
| Current Rating | 20A |
| Rcd Sensitivity | 30 mA |
| Number Of Poles | Double Pole (2P) |
| Number Of Modules | 1 |
