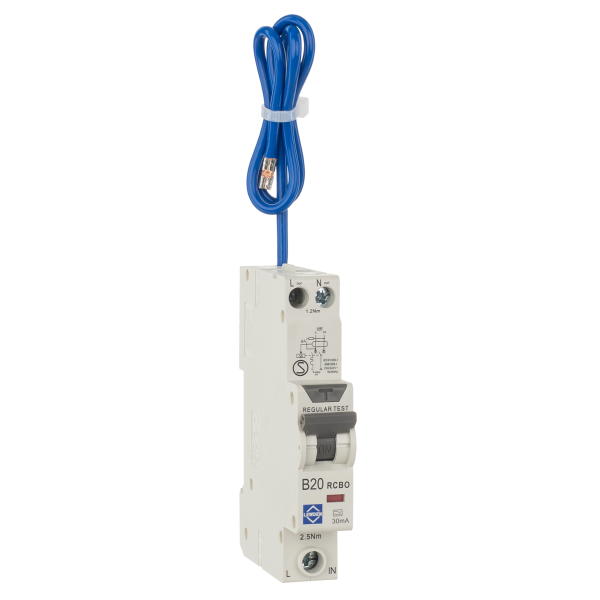

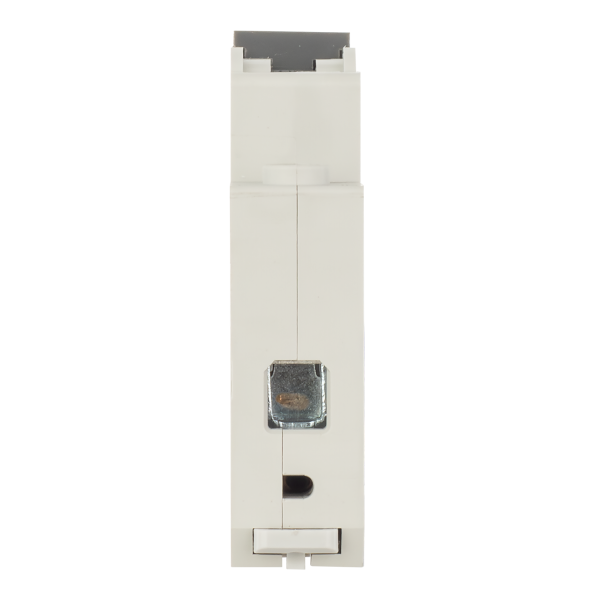

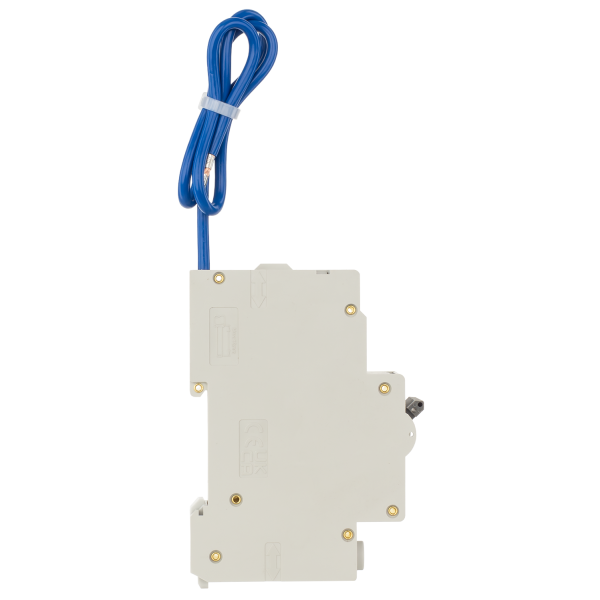

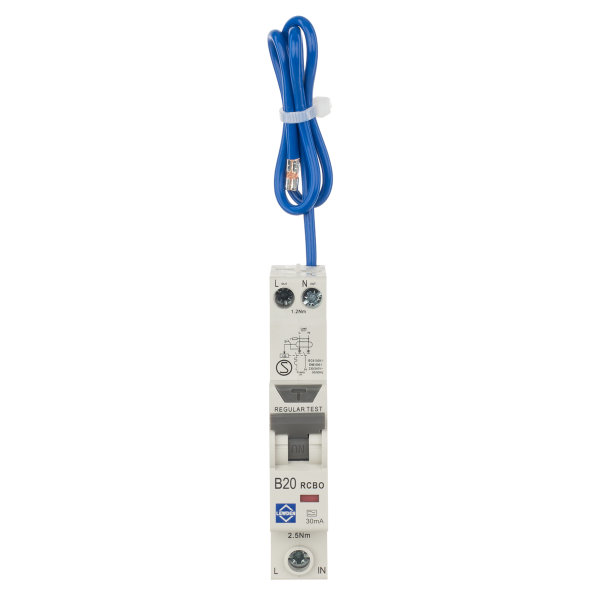

Lewden RCBO-B20/30/1PNA Compact Double Pole B Curve Type A RCBO With Switched Neutral 1P+N 20A 30mA

Compact Double Pole B Curve Type A RCBO – 1P+N, 20A, 30mA with Switched Neutral for Enhanced Safety

This high-performance RCBO combines residual current and overcurrent protection in a compact double-pole design. Featuring a switched neutral and Type A RCD functionality, it ensures reliable circuit protection for residential and commercial installations.

• Compact Double Pole Design: 1P+N configuration for efficient installation in consumer units and distribution boards.
• B Curve Tripping Characteristic: Protects against overloads and short circuits with moderate inrush current tolerance.
• Type A RCD Protection: Detects AC and pulsating DC residual currents for improved electrical safety.
• Switched Neutral Feature: Ensures complete circuit disconnection for enhanced safety during maintenance.
• 20A Rated Current: Suitable for protecting low-power circuits against overcurrent faults.
• 30mA Sensitivity: Provides essential protection against electric shock and leakage currents.
• 6kA Breaking Capacity: Delivers reliable fault protection under short-circuit conditions.

Technical Specification

• Configuration: 1P+N (Single Pole + Neutral)
• Tripping Curve: B Curve
• Residual Current Type: Type A
• Rated Current: 20A
• Breaking Capacity: 6kA
• Rated Residual Operating Current: 30mA
• Neutral Switching: Yes
• Mounting: DIN Rail
• Standards Compliance: IEC/EN 61009-1
